Hydraulic Male Stud Non-Return Valve 400 Bar - Stainless Steel
Hydraulic Male Stud Non-Return Valve 400 Bar - Stainless Steel
SKU:FIT-e61c9d
Reliable heavy-duty Male Stud Non-Return Valve for hydraulic systems. Operates at 400 bar pressure, made of durable stainless steel.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non-Return Valve 400 Bar - Stainless Steel
$39.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non-Return Valve 400 Bar - Stainless Steel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non-Return Valve with Elastomer Seal offers heavy-duty performance with a nominal operating pressure of 400 bar. It features a tube diameter of 8.0 mm and M-Thread Size of 14x1.5, constructed from high-quality stainless steel for durability. The valve, equipped with a B3 ring, ensures reliable and secure flow control, making it ideal for hydraulic systems in demanding industrial settings.
Ready to Grow Without Cash Flow Constraints?

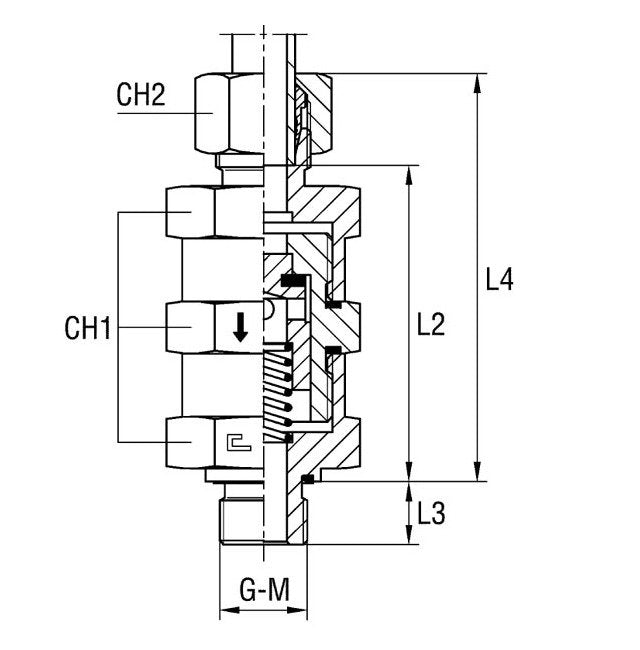

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications Diameter Pass
4 mm
Specifications L2
55.0 mm
Specifications L3
12.0 mm
Specifications L4
69.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
8.0 mm
