Hydraulic Male Stud Non Return Valve BSP Parallel

Name: Hydraulic Male Stud Non Return Valve BSP Parallel
Brand: World Wide Metric, Inc.
SKU: VAL-27f932
Price: 29.99 USD
Availability: OutOfStock

SKU:VAL-27f932

Reliable Hydraulic Non Return Valve for precise fluid control in hydraulic systems. Stainless steel body, 350 bar, DIN Valves compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel ensures reliable fluid flow control with a durable stainless steel body. Operating at 350 bar pressure, it features precise specifications including a 10mm M tube diameter and 3/8 inch W tube diameter. With extensive testing to meet industry standards, this valve provides exceptional performance for hydraulic systems.

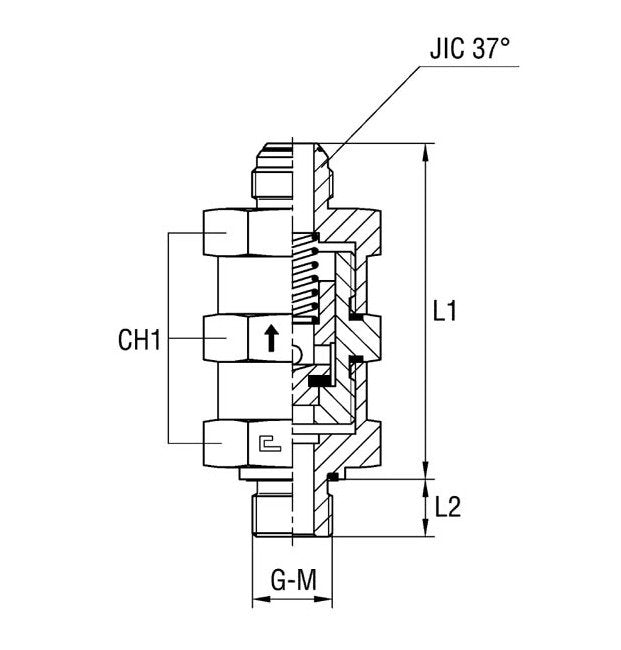

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/4

Specifications Jic 37 Thread

9/16-18

Specifications L1

64.1 mm

Specifications L2

12.0 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

10 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

3/8 in

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel

Hydraulic Male Stud Non Return Valve BSP Parallel
