Hydraulic Male Stud Non Return Valve - BSP Parallel, Elastomer Seal

Name: Hydraulic Male Stud Non Return Valve - BSP Parallel, Elastomer Seal
Brand: World Wide Metric, Inc.
SKU: FIT-29a347
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-29a347

High-performance Male Stud Non Return Valve for hydraulic systems - 350 bar, various duty options, Carbon Steel construction.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal ensures reliable pressure regulation with options for Extra Light Duty, Heavy Duty, or Light Duty applications. Operating at a nominal pressure of 350 bar, this valve features precise dimensions including an 8 mm tube diameter, 1/8 thread size, and 4 mm pass diameter. Constructed with durable Carbon Steel, it meets stringent industry standards for robust performance.

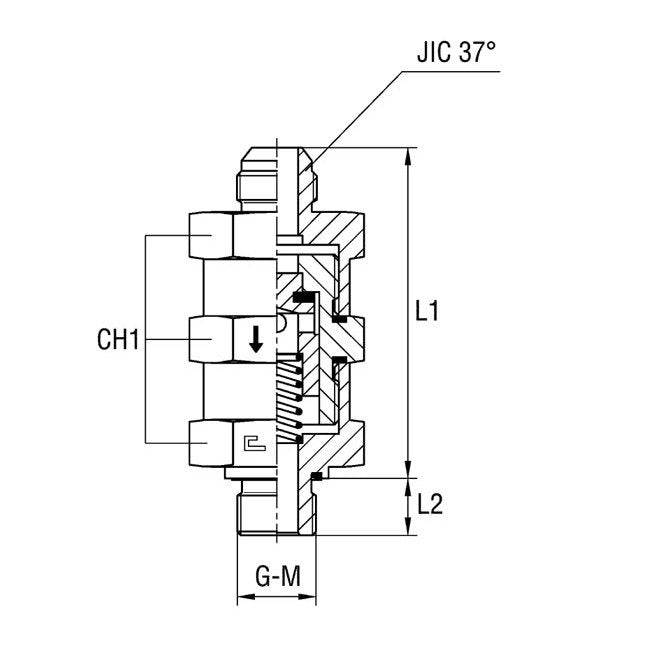

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/8

Specifications Jic 37 Thread

1/2-20

Specifications L1

64.0 mm

Specifications L2

8.0 mm

Specifications Material

Carbon Steel

Specifications M Tube Diameter

8 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

5/16 in

Hydraulic Male Stud Non Return Valve - BSP Parallel, Elastomer Seal
