Hydraulic Male Stud Non Return Valve BSP Taper
Hydraulic Male Stud Non Return Valve BSP Taper
SKU:VAL-20005a
Efficient Hydraulic Non Return Valve for precise flow control in light-duty hydraulic applications, crafted from durable carbon steel.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve BSP Taper
$49.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve BSP Taper
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

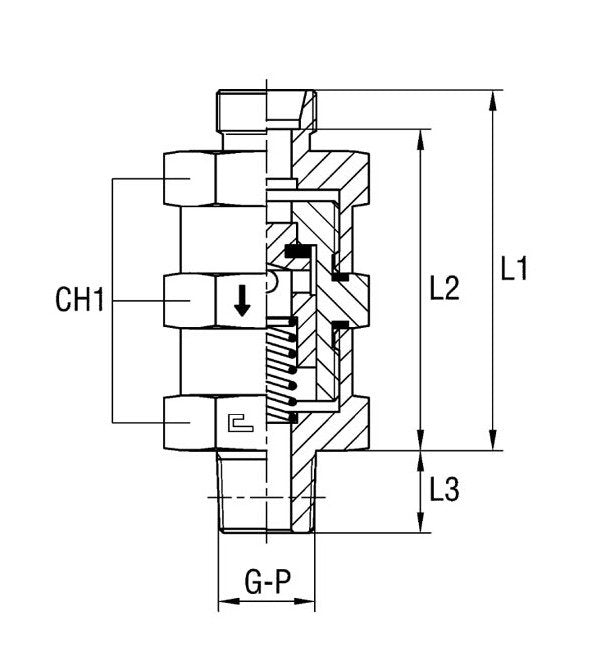

The Hydraulic Male Stud Non Return Valve BSP Taper - Body Only is designed for light-duty applications with a nominal operating pressure of 100 bar. Constructed from carbon steel, it features a tube diameter of 28mm, G-Thread Size of 1, and various precise dimensions including L1, L2, L3, CH1, and Diameter Pass. This valve ensures efficient flow control, reliability, and durability, meeting the stringent requirements of hydraulic systems in both consumer and institutional settings.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
18 mm
Specifications G Thread Size
1
Specifications L1
80 mm
Specifications L2
72.5 mm
Specifications L3
24.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
28 mm
Category 6
Male Stud Non Return Valve Thread BSP Taper
