Hydraulic Male Stud Non Return Valve BSP Taper - Equipped B4 Ring

Name: Hydraulic Male Stud Non Return Valve BSP Taper - Equipped B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-2f12e7
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-2f12e7

Durable and reliable Male Stud Non Return Valve for hydraulic systems, meets light-duty pressure requirements.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

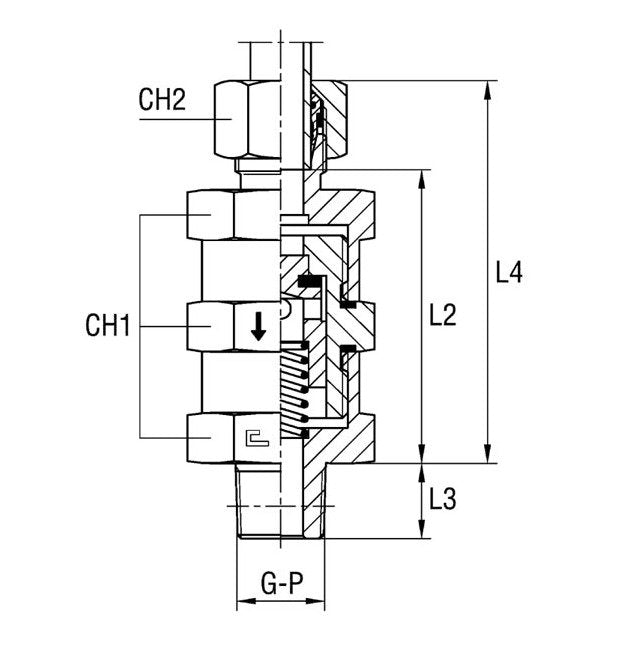

The Hydraulic Male Stud Non Return Valve with BSP Taper and Equipped B4 Ring is designed for light-duty applications with a nominal operating pressure of 100 bar. Crafted from stainless steel, this valve ensures durability and reliability. With a tube diameter of 42.0 mm and G-Thread size of 1 1/2, it provides efficient flow control. The valve's precise dimensions, including L2, L3, L4, CH1, CH2, and diameter pass, make it suitable for hydraulic systems requiring secure non-return functionality.

Product Specifications

Specifications Ch1

70 mm

Specifications Ch2

60 mm

Specifications Diameter Pass

29 mm

Specifications G Thread Size

1 1/2

Specifications L2

89 mm

Specifications L3

25.0 mm

Specifications L4

111.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

42.0 mm
