Hydraulic Male Stud Non Return Valve, Elastomer Seal, BSP Parallel - O-ring Body
Hydraulic Male Stud Non Return Valve, Elastomer Seal, BSP Parallel - O-ring Body
SKU:FIT-f63573
Durable Hydraulic Non Return Valve with Elastomer Seal for Hydraulic Systems
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve, Elastomer Seal, BSP Parallel - O-ring Body
$49.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve, Elastomer Seal, BSP Parallel - O-ring Body
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non Return Valve features a durable elastomer seal, designed for extra light duty to heavy duty applications. With a nominal operating pressure of 240 bar, this valve ensures reliable performance. Constructed from high-quality carbon steel, this valve meets the stringent standards required for hydraulic systems in industrial settings.
Ready to Grow Without Cash Flow Constraints?

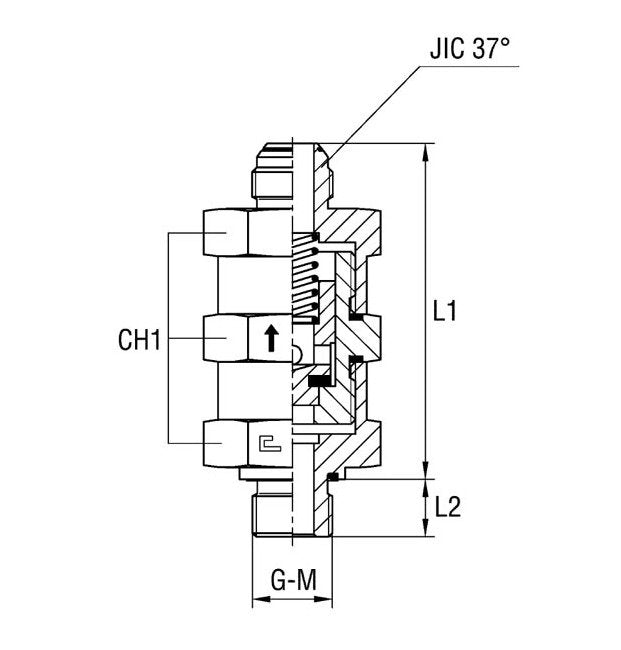

Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
29 mm
Specifications G Thread Size
1 1/2
Specifications Jic 37 Thread
1 7/8-12
Specifications L1
114.5 mm
Specifications L2
22 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
38 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 1/2 in
