Hydraulic Male Stud Non Return Valve - Heavy Duty 400 Bar
Hydraulic Male Stud Non Return Valve - Heavy Duty 400 Bar
SKU:VAL-3adf59
Durable stainless steel Hydraulic Male Stud Non Return Valve for heavy-duty 400 bar applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve - Heavy Duty 400 Bar
$39.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve - Heavy Duty 400 Bar
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

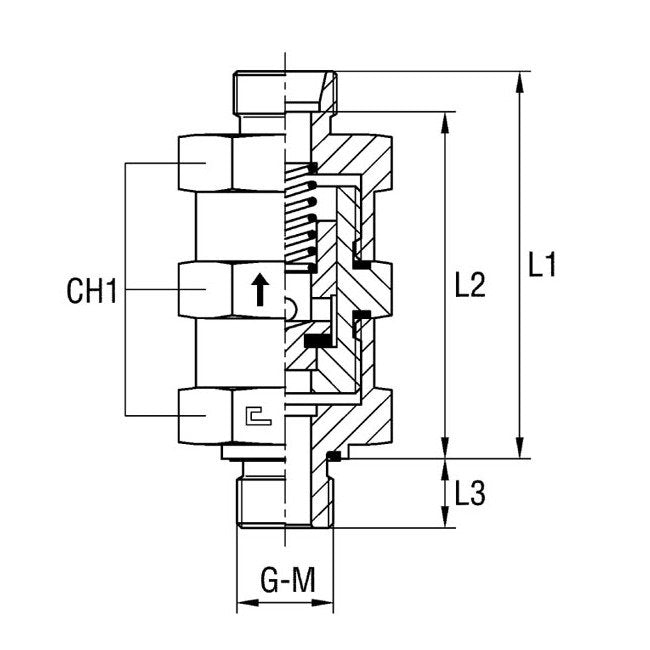

The Hydraulic Male Stud Non Return Valve is designed for heavy-duty applications with a nominal operating pressure of 400 bar. Crafted from durable stainless steel, it features a 16.0 mm tube diameter and a 1/2 G-thread size. With precise measurements including L1: 74 mm, L2: 65.5 mm, and L3: 14.0 mm, this valve ensures optimal performance in hydraulic systems.
Product Specifications
Specifications Ch1
41 mm
Specifications Diameter Pass
11 mm
Specifications G Thread Size
1/2
Specifications L1
74 mm
Specifications L2
65.5 mm
Specifications L3
14.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
16.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
