Hydraulic Male Stud Non Return Valve - Metric Parallel Seal B4 Ring
Hydraulic Male Stud Non Return Valve - Metric Parallel Seal B4 Ring
SKU:FIT-557490
High-performance Hydraulic Male Stud Non Return Valve for secure flow control in hydraulic systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve - Metric Parallel Seal B4 Ring
$29.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve - Metric Parallel Seal B4 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

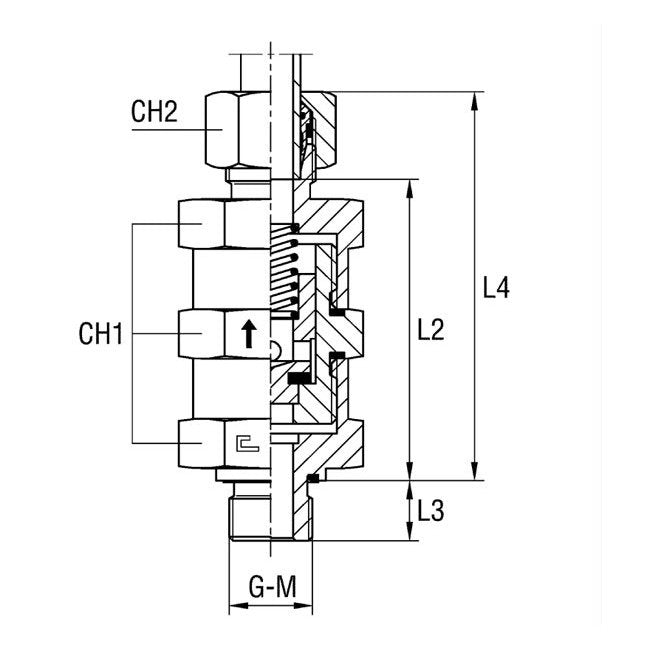

The Hydraulic Male Stud Non Return Valve is designed for light-duty applications with a nominal operating pressure of 250 bar. Constructed from durable carbon steel, this valve features a 10.0mm tube diameter and a 14x1.5 M-thread size. With precise dimensions of L2: 54.0mm, L3: 12.0mm, L4: 68.5mm, CH1: 19.0mm, and CH2: 19.0mm, this valve ensures efficient flow control and reliable performance. The 4mm diameter pass and elastomer seal provide secure sealing and prevent backflow, meeting the stringent requirements of hydraulic systems.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications Diameter Pass
4 mm
Specifications L2
54.0 mm
Specifications L3
12.0 mm
Specifications L4
68.5 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
10.0 mm
