Hydraulic Male Stud Non Return Valve - Metric Parallel Thread

Name: Hydraulic Male Stud Non Return Valve - Metric Parallel Thread
Brand: World Wide Metric, Inc.
SKU: VAL-c71522
Price: 29.99 USD
Availability: OutOfStock

SKU:VAL-c71522

High-performance Hydraulic Non Return Valve for precise flow control in hydraulic systems. Ideal for light-duty operations at 250 bar pressure. Durable carbon steel construction.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal is designed for light-duty operations with a Nominal Operating Pressure of 250 bar. This carbon steel valve features a tube diameter of 8.0mm, M-Thread Size of 12x1.5, and precise dimensions for optimal performance. The inclusion of the B4 ring ensures secure sealing and efficient flow control, making it ideal for hydraulic systems in various industrial applications.

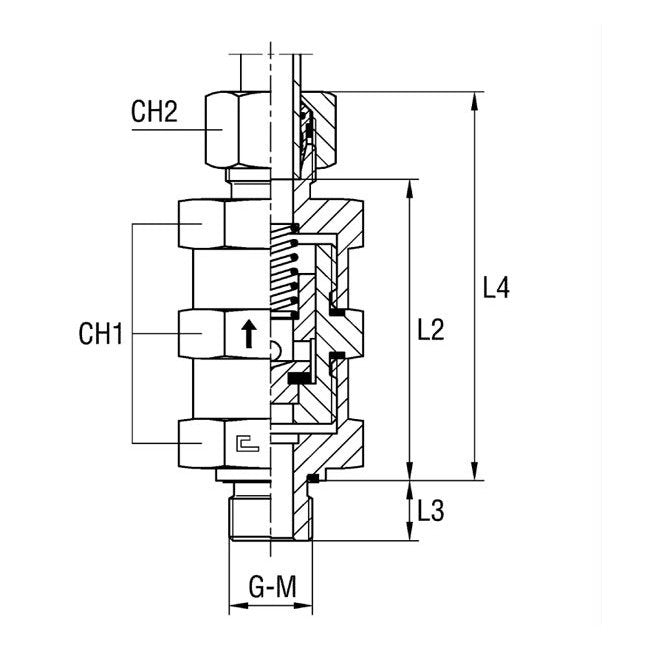

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

17.0 mm

Specifications Diameter Pass

4 mm

Specifications L2

53 mm

Specifications L3

12.0 mm

Specifications L4

67.5 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

12x1.5

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

8.0 mm

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
