Hydraulic Male Stud Non Return Valve, NPT Taper - Equipped B4 Ring

Name: Hydraulic Male Stud Non Return Valve, NPT Taper - Equipped B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-7c06bc
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-7c06bc

High-quality Hydraulic Male Stud Non Return Valve for reliable flow control in hydraulic systems, ideal for light-duty applications. Durable carbon steel construction with precise dimensions.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with NPT Taper and Equipped B4 Ring is designed for light-duty applications with a Nominal Operating Pressure of 250 bar. Constructed from durable carbon steel, this valve features a Tube Diameter of 8.0 mm and a 1/4" P-Thread Size. With precise dimensions and a Diameter Pass. of 4 mm, it ensures secure flow control and reliability in hydraulic systems.

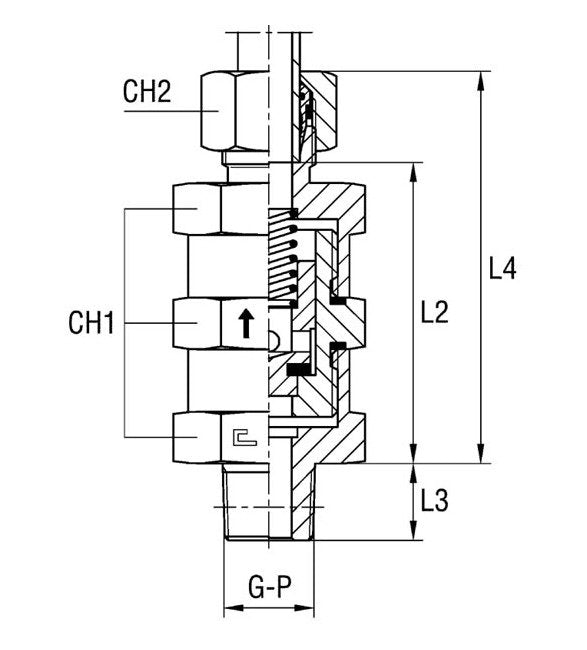

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

17.0 mm

Specifications Diameter Pass

4 mm

Specifications L2

51 mm

Specifications L3

15 mm

Specifications L4

65.5 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications P Thread Size

1/4

Specifications Tube Diameter

8.0 mm
