Hydraulic Male Stud Non Return Valve NPT Taper - Light Duty 160 Bar
Hydraulic Male Stud Non Return Valve NPT Taper - Light Duty 160 Bar
SKU:VAL-878aa4
Ensure efficient fluid control with our Hydraulic Male Stud Non-Return Valve NPT Taper - Light Duty 160 Bar. Crafted from stainless steel for durability and reliability. Ideal for industrial hydraulic systems.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve NPT Taper - Light Duty 160 Bar
$45.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve NPT Taper - Light Duty 160 Bar
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non-Return Valve NPT Taper ensures efficient fluid control with a light-duty pressure rating of 160 bar. Crafted from high-grade stainless steel, it offers durability and corrosion resistance. This valve, equipped with a B4 ring, maintains reliability in hydraulic systems, making it ideal for industrial applications that demand precision and quality.

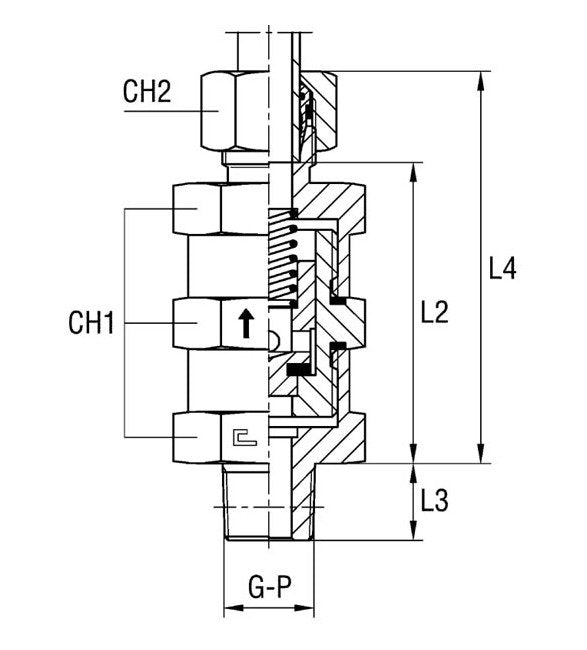

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
32 mm
Specifications Diameter Pass
11 mm
Specifications L2
61.5 mm
Specifications L3
19.0 mm
Specifications L4
77.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications P Thread Size
1/2
Specifications Tube Diameter
18.0 mm
Category 6
Male Stud Non Return Valve Thread NPT Taper
