Hydraulic Male Stud Non Return Valve NPT Taper - Stainless Steel Body

Name: Hydraulic Male Stud Non Return Valve NPT Taper - Stainless Steel Body
Brand: World Wide Metric, Inc.
SKU: VAL-fb83cd
Price: 45.99 USD
Availability: OutOfStock

SKU:VAL-fb83cd

Durable stainless steel Hydraulic Male Stud Non Return Valve NPT Taper for reliable performance in hydraulic systems.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

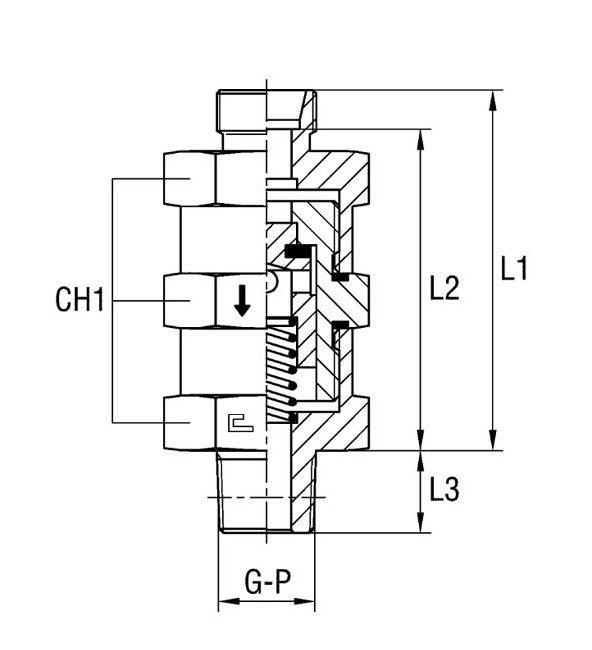

The Hydraulic Male Stud Non Return Valve NPT Taper features a durable stainless steel body suitable for light duty applications with a nominal operating pressure of 160 bar. This valve, with a 22mm tube diameter and 3/4 P-Thread Size, ensures reliable performance and precise control. Its compact design, measuring 80mm (L1) x 72.5mm (L2) x 19.0mm (L3), coupled with a 16mm Diameter Pass., makes it ideal for various hydraulic systems. Compliant with industry standards, this valve is a reliable and efficient choice for hydraulic applications.

Product Specifications

Specifications Ch1

50 mm

Specifications Diameter Pass

16 mm

Specifications L1

80 mm

Specifications L2

72.5 mm

Specifications L3

19.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications P Thread Size

3/4

Specifications Tube Diameter

22 mm

Category 6

Male Stud Non Return Valve Thread NPT Taper

Hydraulic Male Stud Non Return Valve NPT Taper - Stainless Steel Body
