Hydraulic Male Stud Non Return Valve NPT Taper - Stainless Steel Body Only

Name: Hydraulic Male Stud Non Return Valve NPT Taper - Stainless Steel Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-3eda20
Price: 35.99 USD
Availability: OutOfStock

SKU:FIT-3eda20

Stainless Steel Male Stud Non Return Valve for Hydraulic Systems - Light Duty, 160 bar

$35.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve NPT Taper features a sturdy Stainless Steel body suitable for Light Duty applications with a Nominal Operating Pressure of 160 bar. This valve is designed for a Tube Diameter of 22mm, threaded with a 3/4" P-Thread Size, and compact with dimensions of L1: 80mm, L2: 72.5mm, L3: 19.0mm. With a diameter pass of 16mm, CH1 at 50mm, it ensures reliable flow control and durability. Complying with industry standards, this valve offers precision and efficiency for hydraulic systems.

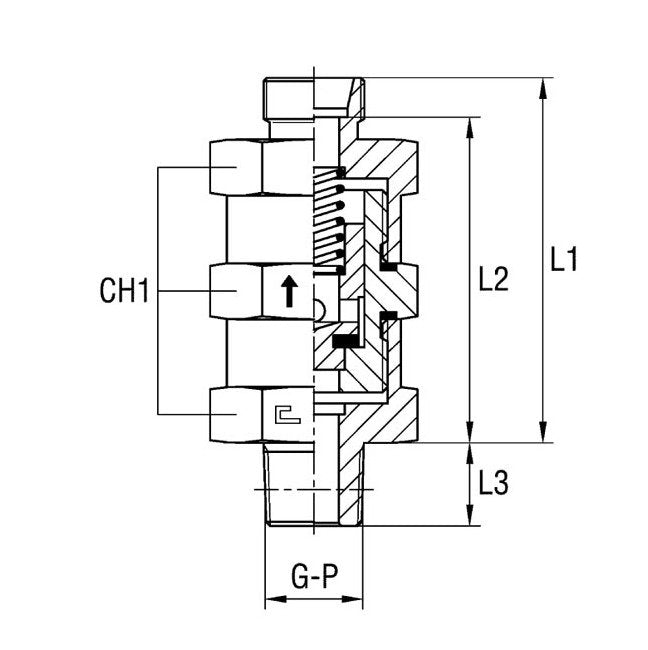

Product Specifications

Specifications Ch1

50 mm

Specifications Diameter Pass

16 mm

Specifications L1

80 mm

Specifications L2

72.5 mm

Specifications L3

19.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications P Thread Size

3/4

Specifications Tube Diameter

22 mm

Hydraulic Male Stud Non Return Valve NPT Taper - Stainless Steel Body Only
