Hydraulic Male Stud Non Return Valve Thread NPT Taper - Body Only

Name: Hydraulic Male Stud Non Return Valve Thread NPT Taper - Body Only
Brand: World Wide Metric, Inc.
SKU: VAL-c0b6ee
Price: 29.99 USD
Availability: OutOfStock

SKU:VAL-c0b6ee

High-quality Hydraulic Male Stud Non Return Valve designed for light-duty hydraulic applications. Nominal operating pressure: 160 bar. Made of stainless steel.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve Thread NPT Taper - Body Only is designed for light-duty applications with a nominal operating pressure of 160 bar. Made of high-quality stainless steel, this valve features precise tubing and thread dimensions, ensuring reliable performance. Its compact yet sturdy construction, including a 11mm diameter passageway, makes it ideal for hydraulic systems requiring efficient flow control. Compliant with industry standards, this valve offers durability and efficiency in hydraulic applications.

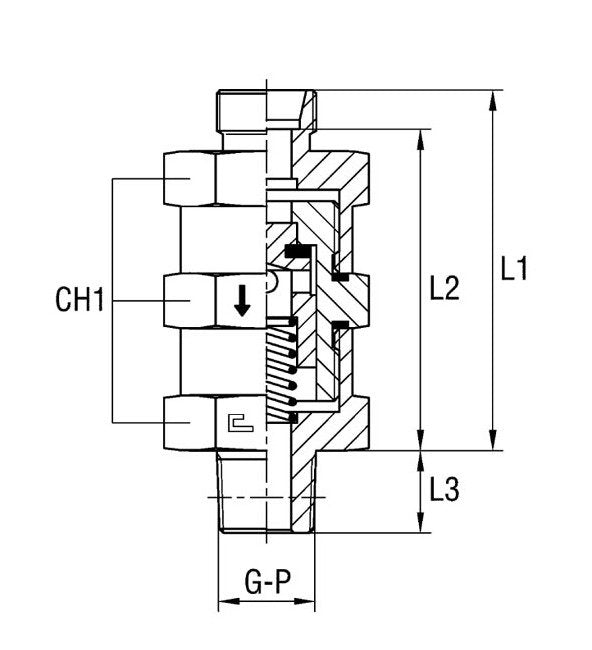

Product Specifications

Specifications Ch1

41 mm

Specifications Diameter Pass

11 mm

Specifications L1

69.0 mm

Specifications L2

61.5 mm

Specifications L3

19.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications P Thread Size

1/2

Specifications Tube Diameter

18.0 mm
