Hydraulic Male Stud Non Return Valve Thread NPT Taper - Carbon Steel Body

Name: Hydraulic Male Stud Non Return Valve Thread NPT Taper - Carbon Steel Body
Brand: World Wide Metric, Inc.
SKU: FIT-1fe37f
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-1fe37f

Ensure hydraulic system reliability with this Male Stud Non Return Valve. Operating pressure: 250 bar. Precision-built for optimal performance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve Thread NPT Taper - Carbon Steel Body is designed for light-duty applications with a nominal operating pressure of 250 bar. Its durable carbon steel construction ensures reliable performance. With a tube diameter of 10.0 mm and a P-thread size of 1/4, this valve is ideal for hydraulic systems requiring effective check valve functionality. It meets industry-leading standards and offers precision engineering for seamless integration.

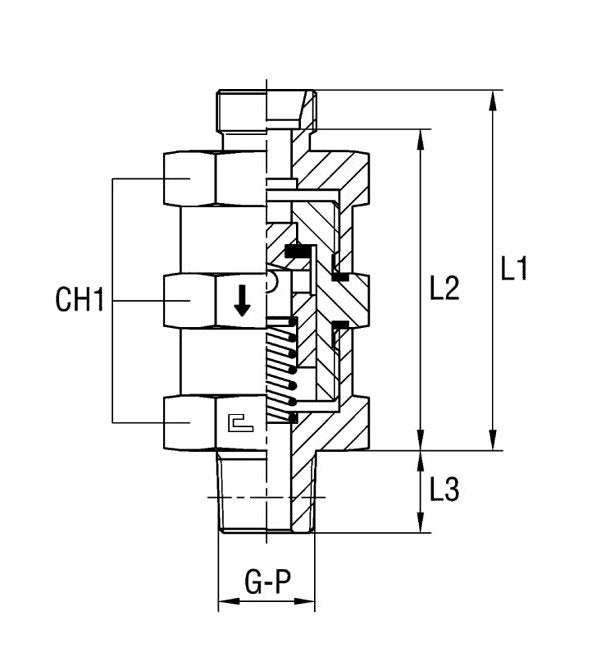

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications L1

59.0 mm

Specifications L2

52.0 mm

Specifications L3

15 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications P Thread Size

1/4

Specifications Tube Diameter

10.0 mm

Hydraulic Male Stud Non Return Valve Thread NPT Taper - Carbon Steel Body
