Hydraulic Male Stud Non Return Valve with Elastomer Seal

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal
Brand: World Wide Metric, Inc.
SKU: VAL-032215
Price: 69.99 USD
Availability: OutOfStock

SKU:VAL-032215

Reliable Hydraulic Non Return Valve for precise fluid control in hydraulic systems.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel - Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 160 bar. Crafted from carbon steel, this valve ensures reliable performance and durability. Featuring a tube diameter of 18.0 mm and M-Thread Size of 22x1.5, it offers precise hydraulic control. With dimensions optimized for efficiency and a 11 mm diameter pass, this valve is ideal for hydraulic systems requiring secure fluid flow regulation.

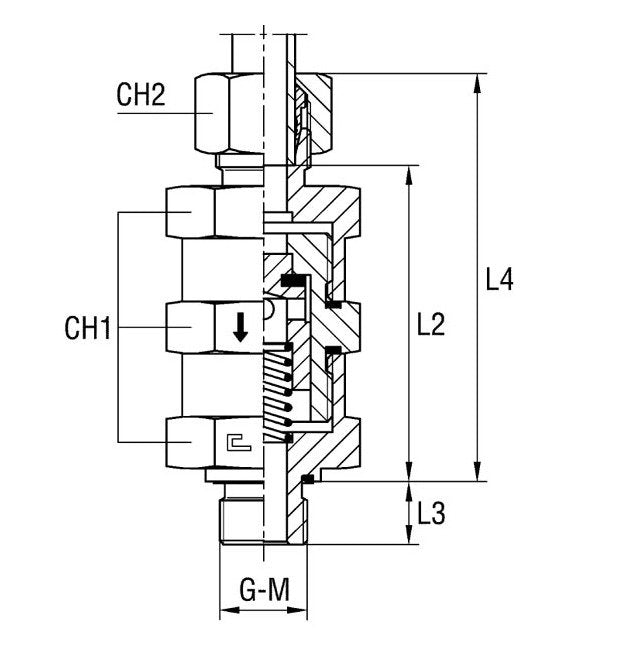

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

32 mm

Specifications Diameter Pass

11 mm

Specifications L2

64.5 mm

Specifications L3

14.0 mm

Specifications L4

80.5 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

18.0 mm

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
