Hydraulic Male Stud Non Return Valve with Elastomer Seal
Hydraulic Male Stud Non Return Valve with Elastomer Seal
SKU:FIT-bce676
Reliable Hydraulic Non Return Valve for Heavy-Duty Applications
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve with Elastomer Seal
$49.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve with Elastomer Seal
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non Return Valve with Elastomer Seal features heavy-duty construction, operating pressure of 400 bar, carbon steel material, and G-thread size of 3/8. With a tube diameter of 12.0 mm and various dimensions, this valve ensures reliable performance in hydraulic applications. Compliant with federal procurement standards and industry regulations, it meets the strict quality and durability requirements of institutional buyers.

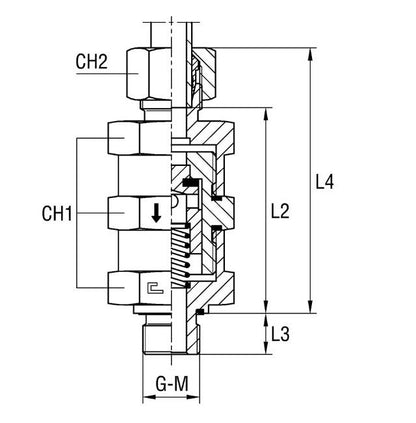

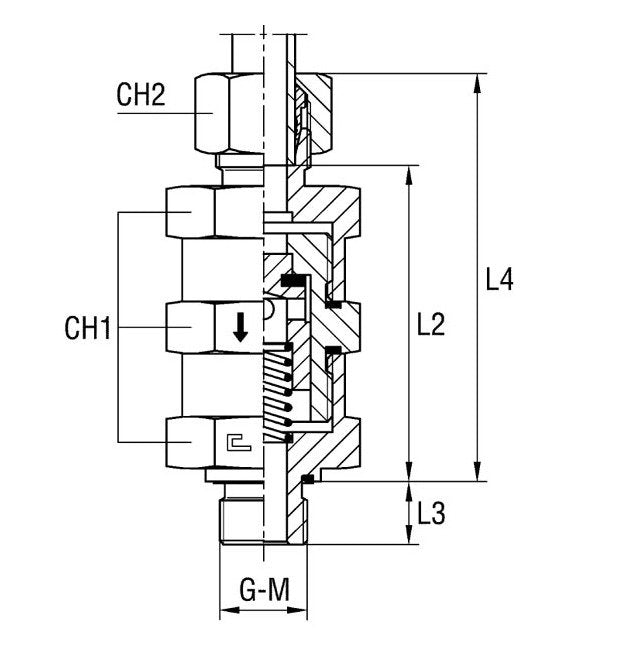

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
24 mm
Specifications Diameter Pass
8 mm
Specifications G Thread Size
3/8
Specifications L2
61 mm
Specifications L3
12.0 mm
Specifications L4
77 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
12.0 mm
