Hydraulic Male Stud Non Return Valve with Elastomer Seal 3/8 BSP Parallel
Hydraulic Male Stud Non Return Valve with Elastomer Seal 3/8 BSP Parallel
SKU:VAL-805202
Heavy-duty Male Stud Non Return Valve with Elastomer Seal, 400 bar pressure, carbon steel construction
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve with Elastomer Seal 3/8 BSP Parallel
$45.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve with Elastomer Seal 3/8 BSP Parallel
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

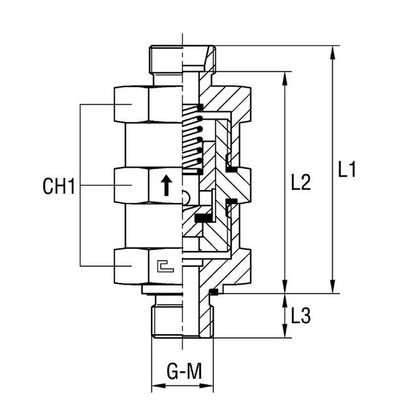

The Hydraulic Male Stud Non Return Valve with Elastomer Seal is designed for heavy-duty applications with a nominal operating pressure of 400 bar. With a tube diameter of 10.0 mm and a G-thread size of 3/8, this valve ensures reliable performance. Crafted from carbon steel, it features precise dimensions including L1 at 68.5 mm, L2 at 61 mm, and L3 at 12.0 mm. The valve's CH1 measures 32 mm, with a diameter pass of 7 mm, offering a robust and durable solution for hydraulic systems.
Product Specifications
Specifications Ch1
32 mm
Specifications Diameter Pass
7 mm
Specifications G Thread Size
3/8
Specifications L1
68.5 mm
Specifications L2
61 mm
Specifications L3
12.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
