Hydraulic Male Stud Non Return Valve with Elastomer Seal

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal
Brand: World Wide Metric, Inc.
SKU: FIT-da71e7
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-da71e7

Highly durable hydraulic non return valve with elastomer seal for industrial applications. Pressure options available.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal is designed for exceptional durability and leak prevention. With pressure options for Extra Light Duty, Heavy Duty, and Light Duty applications, this valve maintains a Nominal Operating Pressure of 350 bar. Crafted from high-grade Carbon Steel, it features precise M and W tube diameters, ensuring reliable performance in hydraulic systems. The valve's BSP Parallel Thread with an O-ring Body provides a secure seal, making it ideal for hydraulic check valve applications in industrial settings.

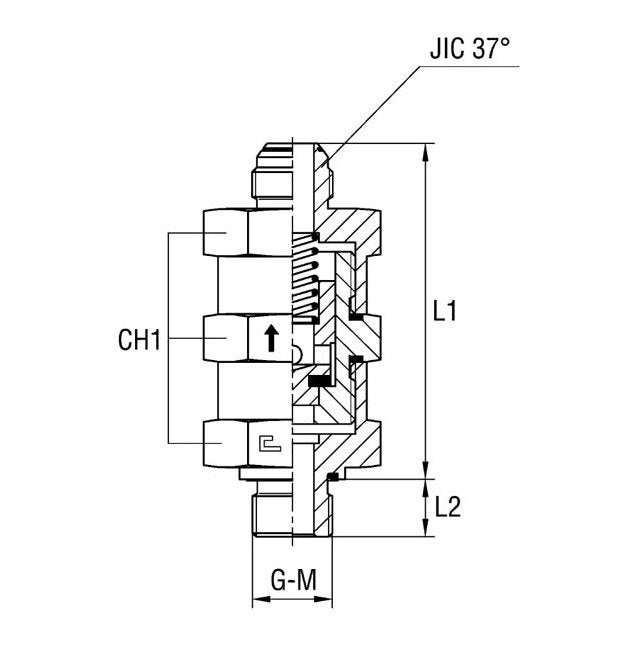

Product Specifications

Specifications Ch1

41 mm

Specifications Diameter Pass

11 mm

Specifications G Thread Size

1/2

Specifications Jic 37 Thread

7/8-14

Specifications L1

79.3 mm

Specifications L2

14.0 mm

Specifications Material

Carbon Steel

Specifications M Tube Diameter

14 mm | 15 mm | 16 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

5/8 in
