Hydraulic Male Stud Non Return Valve with Elastomer Seal

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal
Brand: World Wide Metric, Inc.
SKU: FIT-f5faaf
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-f5faaf

Enhance hydraulic system efficiency with the Male Stud Non Return Valve, ensuring reliability and durability under heavy-duty conditions.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal ensures secure fluid flow in hydraulic systems. With a pressure range suitable for Heavy Duty applications up to 350 bar, this valve features carbon steel construction for durability. The valve's precise engineering with a 12mm M-Tube Diameter and 1/2 inch W-Tube Diameter, meeting stringent industry standards.

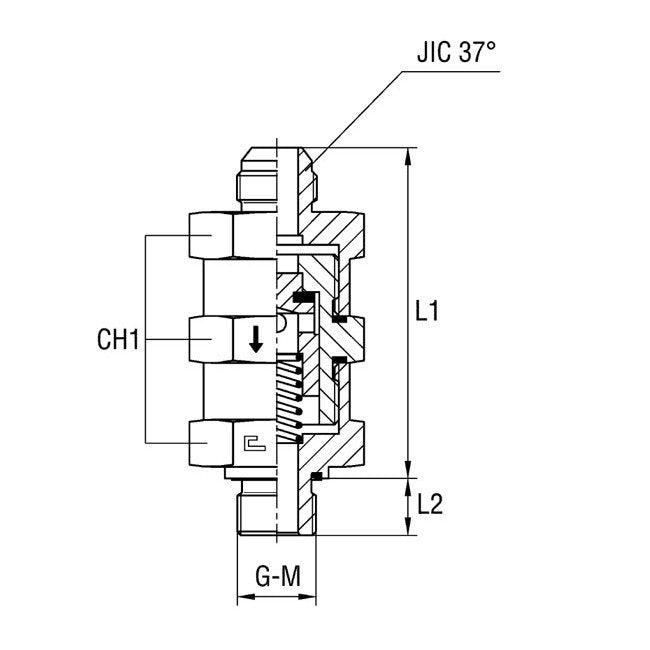

Product Specifications

Specifications Ch1

32 mm

Specifications Diameter Pass

8 mm

Specifications G Thread Size

3/8

Specifications Jic 37 Thread

3/4-16

Specifications L1

73.2 mm

Specifications L2

12.0 mm

Specifications Material

Carbon Steel

Specifications M Tube Diameter

12 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

1/2 in
