Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP - Heavy Duty
Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP - Heavy Duty
SKU:VAL-29a347
Heavy-duty Hydraulic Male Stud Non Return Valve with durable carbon steel construction for high-pressure applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP - Heavy Duty
$39.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP - Heavy Duty
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP is a robust solution designed for heavy-duty applications. With a nominal operating pressure of 350 bar, this valve ensures reliable performance under high pressure conditions. Crafted from durable carbon steel, it features precise specifications such as M - Tube Diameter of 8mm and G - Thread Size of 1/8. Experience extra light-duty, heavy-duty, and light-duty settings with seamless functionality.
Product Specifications

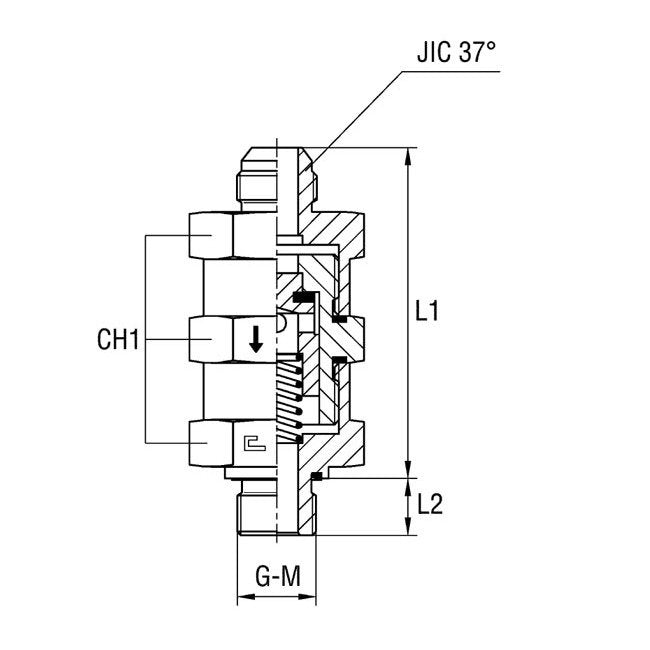

Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/8
Specifications Jic 37 Thread
1/2-20
Specifications L1
64.0 mm
Specifications L2
8.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/16 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
