Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
Brand: World Wide Metric, Inc.
SKU: VAL-5d1376
Price: 49.99 USD
Availability: OutOfStock

SKU:VAL-5d1376

Rugged carbon steel Male Stud Non Return Valve - BSP Parallel for hydraulic systems. Prevents backflow, ensures flow control. DIN valve compatible.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal offers reliable performance in hydraulic systems with a light duty pressure rating of 160 bar. Constructed from robust carbon steel material, this valve ensures durability and longevity. With a tube diameter of 22mm and a G-thread size of 3/4, it is designed for seamless integration into hydraulic setups, providing efficient flow control and preventing backflow. Ideal for DIN valve applications, this valve meets industry standards for quality and performance.

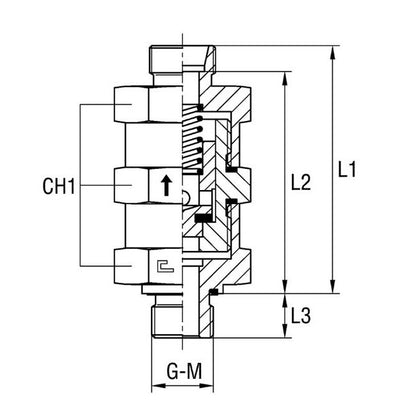

Product Specifications

Specifications Ch1

50 mm

Specifications Diameter Pass

16 mm

Specifications G Thread Size

3/4

Specifications L1

83 mm

Specifications L2

75.5 mm

Specifications L3

16.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

22 mm
