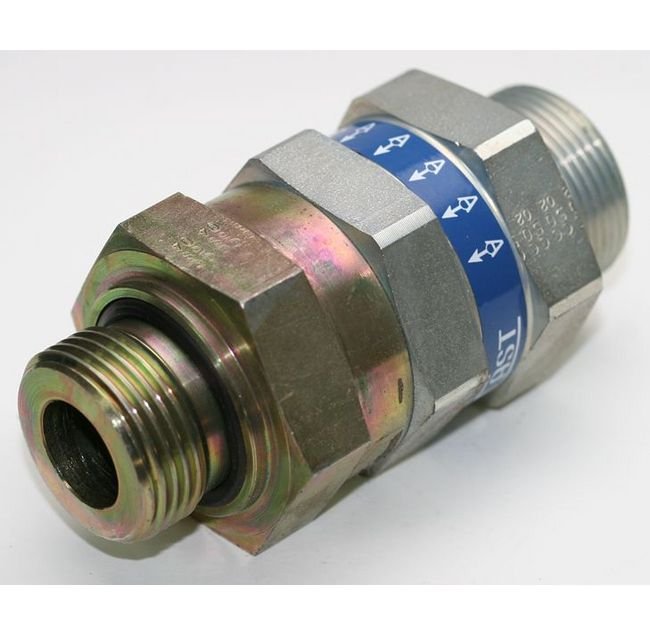

Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP Parallel

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-77d57f
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-77d57f

High-quality Hydraulic Male Stud Non Return Valve for efficient fluid control in light-duty applications. Meets industry standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP Parallel - Body Only is designed for light-duty applications with a nominal operating pressure of 250 bar. Crafted from carbon steel, this valve features a tube diameter of 6.0mm and a G-thread size of 1/8, ensuring precision and durability. With a compact design and a diameter pass of 4mm, it offers efficient fluid control while meeting stringent industry standards for reliability and performance.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/8

Specifications L1

60.0 mm

Specifications L2

53 mm

Specifications L3

8.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

6.0 mm

Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP Parallel
