Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP Parallel

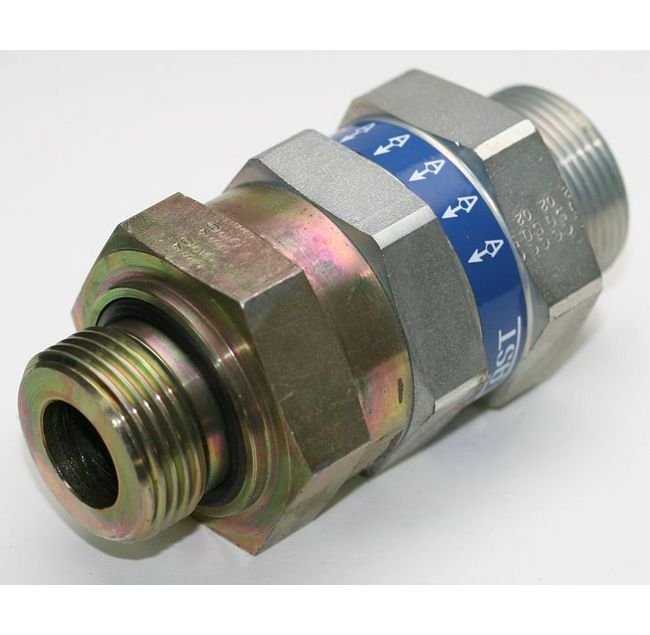

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-60ae38
Price: 25.99 USD
Availability: OutOfStock

SKU:FIT-60ae38

High-quality Hydraulic Non Return Valve for hydraulic systems. Max pressure 250 bar. Durable carbon steel construction.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP Parallel is designed for light-duty applications with a nominal operating pressure of 250 bar. Made of durable carbon steel, this valve features a tube diameter of 12.0 mm and G-thread size of 3/8. With precise measurements including L1: 67.5 mm, L2: 60.5 mm, and L3: 12.0 mm, this valve ensures reliable performance in hydraulic systems. Its compact design and 8 mm diameter pass make it suitable for various hydraulic check valve applications.

Product Specifications

Specifications Ch1

32 mm

Specifications Diameter Pass

8 mm

Specifications G Thread Size

3/8

Specifications L1

67.5 mm

Specifications L2

60.5 mm

Specifications L3

12.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

12.0 mm

Hydraulic Male Stud Non Return Valve with Elastomer Seal BSP Parallel
