Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-7ac23b
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-7ac23b

High-quality Hydraulic Non Return Valve with Elastomer Seal for precise hydraulic control.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

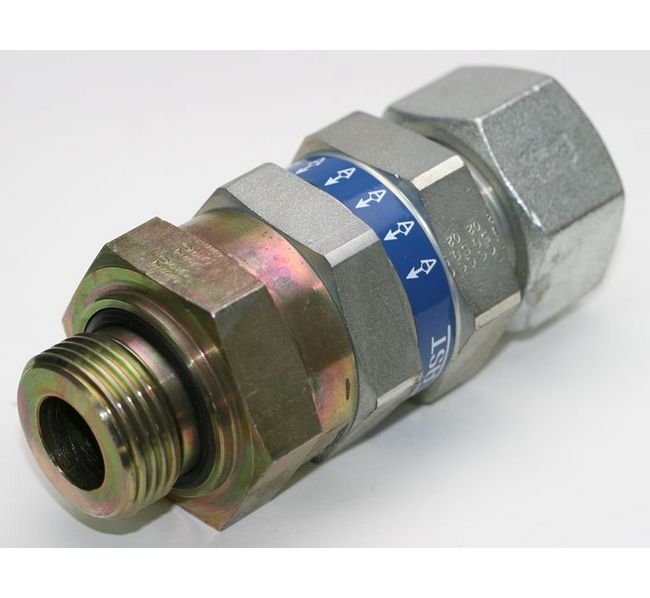

The Hydraulic Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 250 bar. Made of carbon steel, this valve features a G-thread size of 1/4, tube diameter of 8.0mm, and various precise measurements to ensure optimal performance. Its innovative design and durable construction make it ideal for hydraulic systems in a range of industries.

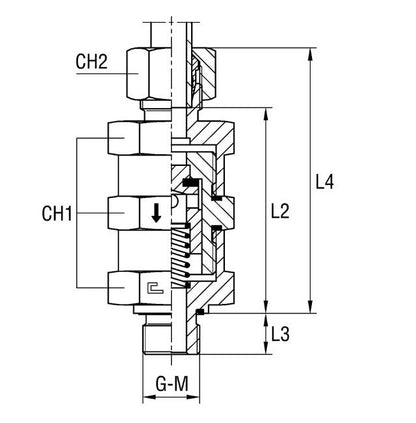

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

17.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/4

Specifications L2

53 mm

Specifications L3

12.0 mm

Specifications L4

67.5 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

8.0 mm

Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
