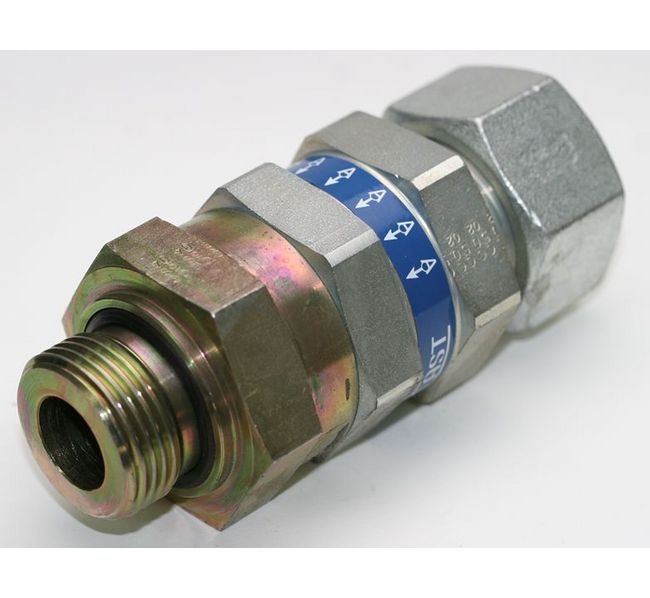

Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-d85423
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-d85423

Reliable Hydraulic Non Return Valve for light-duty applications with 250 bar pressure. Easy to install and durable.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal is designed for light-duty applications with a nominal operating pressure of 250 bar. Crafted from durable carbon steel, this valve features a 10.0mm tube diameter and 1/4 G-thread size. The inclusion of the Equipped B3 Ring ensures reliable performance and easy installation, making it ideal for hydraulic systems in industrial and institutional settings.

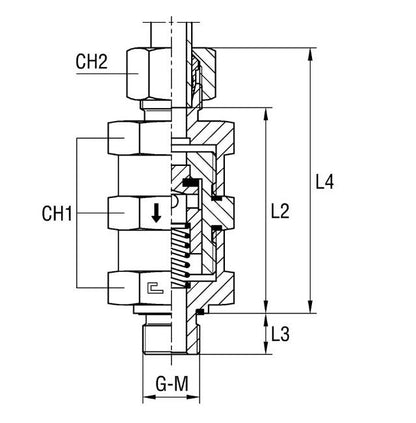

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/4

Specifications L2

54.0 mm

Specifications L3

12.0 mm

Specifications L4

68.5 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

10.0 mm

Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
