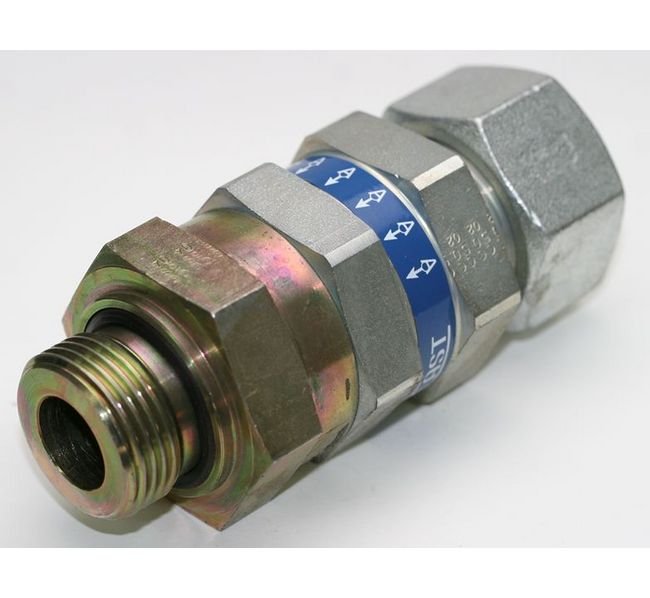

Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-78720d
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-78720d

Ensure precise hydraulic flow control with this Male Stud Non Return Valve. Durable carbon steel construction, 250 bar pressure capacity, and 6.0mm tube diameter.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal offers reliable light-duty pressure control at 250 bar. Crafted from durable carbon steel, this valve features a 6.0mm tube diameter and 1/8 G-thread size. With precise dimensions and an Equipped B3 Ring, it ensures secure flow management in hydraulic systems.

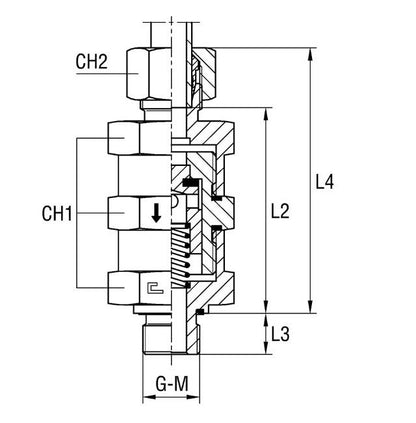

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

14 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/8

Specifications L2

53 mm

Specifications L3

8.0 mm

Specifications L4

67.5 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

6.0 mm
