Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
Brand: World Wide Metric, Inc.
SKU: VAL-506ff8
Price: 34.99 USD
Availability: OutOfStock

SKU:VAL-506ff8

Reliable Hydraulic Non Return Valve for optimal flow control & backflow prevention. Stainless steel construction, light duty, 250 bar.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve is designed for light duty operations with a nominal operating pressure of 250 bar. Crafted from high-grade stainless steel, this valve features a 10.0 mm tube diameter and a G-thread size of 1/4. With precise dimensions and an elastomer seal, it ensures reliable performance and durability. Compliant with industry standards, this valve is ideal for hydraulic systems requiring efficient flow control and backflow prevention.

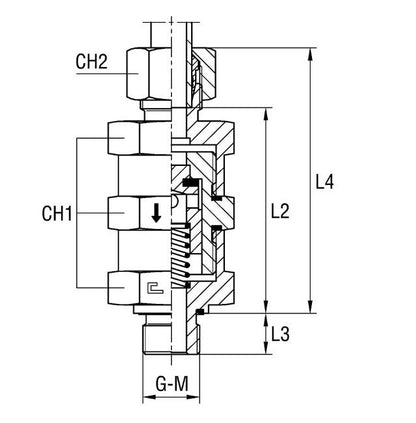

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/4

Specifications L2

54.0 mm

Specifications L3

12.0 mm

Specifications L4

68.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

10.0 mm

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel

Hydraulic Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
