Hydraulic Male Stud Non Return Valve with Elastomer Seal - DIN Check Valve
Hydraulic Male Stud Non Return Valve with Elastomer Seal - DIN Check Valve
SKU:VAL-ceb77b
Durable Hydraulic Male Stud Non Return Valve for precise flow control and backflow prevention in hydraulic systems.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve with Elastomer Seal - DIN Check Valve
$39.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve with Elastomer Seal - DIN Check Valve
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non Return Valve with Elastomer Seal is a reliable component designed for hydraulic systems, featuring options for Extra Light Duty, Heavy Duty, and Light Duty operations. With a Nominal Operating Pressure of 350 bar and made of durable Stainless Steel material, this valve ensures long-lasting performance. The valve is compatible with tube diameters of 14mm, 15mm, and 16mm, and offers a secure M-Thread Size of 22x1.5 for seamless installation. Meeting stringent DIN standards, this valve provides efficient flow control and prevents backflow, making it ideal for diverse industrial applications.

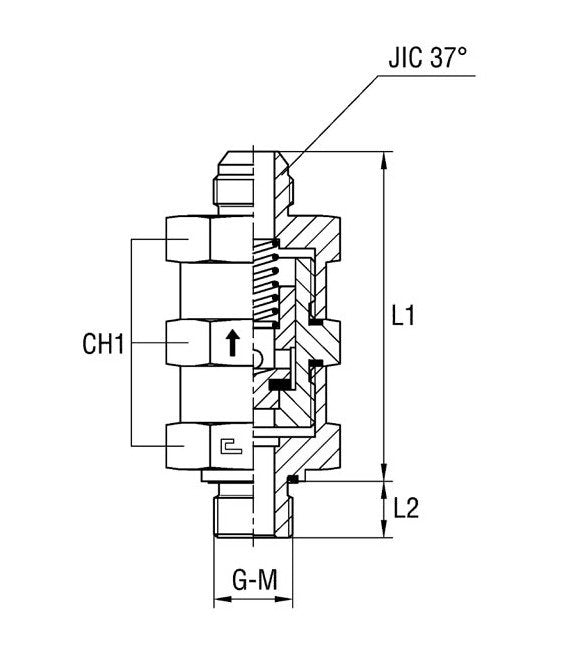

Product Specifications
Specifications Ch1
41 mm
Specifications Diameter Pass
11 mm
Specifications Jic 37 Thread
7/8-14
Specifications L1
79.3 mm
Specifications L2
14.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
22x1.5
Specifications M Tube Diameter
14 mm | 15 mm | 16 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/8 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
