Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
SKU:FIT-640c16
Heavy-duty Hydraulic Male Stud Non Return Valve with Elastomer Seal for precise flow control in industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
$59.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non Return Valve is a heavy-duty solution designed for industrial applications. With a nominal operating pressure of 250 bar, this valve ensures reliable performance under high-pressure conditions. Crafted from carbon steel, it features a tube diameter of 38.0 mm and M-thread size of 48x2. Equipped with a B4 ring, this valve offers exceptional sealing properties and precise functionality. Ideal for hydraulic systems requiring secure flow control, this valve is a dependable choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?

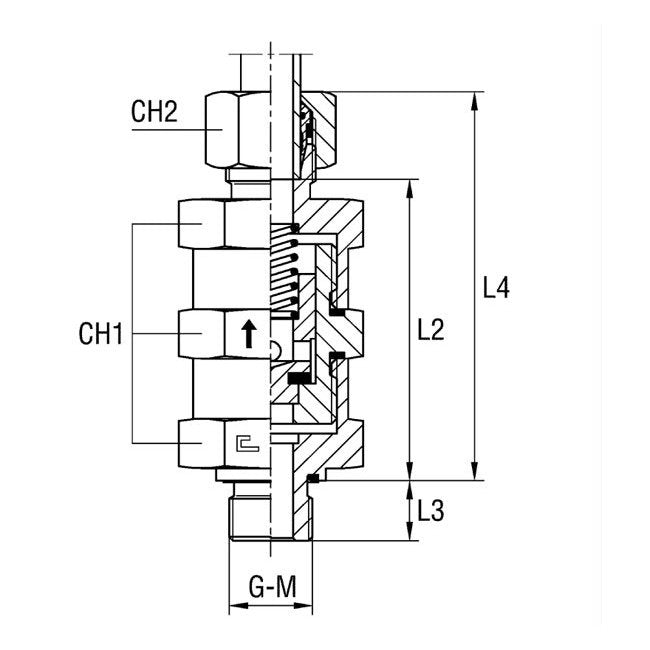

Product Specifications
Specifications Ch1
70 mm
Specifications Ch2
60 mm
Specifications Diameter Pass
29 mm
Specifications L2
93 mm
Specifications L3
22.0 mm
Specifications L4
123.5 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
48x2
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
38.0 mm
