Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
Brand: World Wide Metric, Inc.
SKU: FIT-e523ed
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-e523ed

High-quality Hydraulic Male Stud Non Return Valve for efficient flow control in hydraulic systems.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

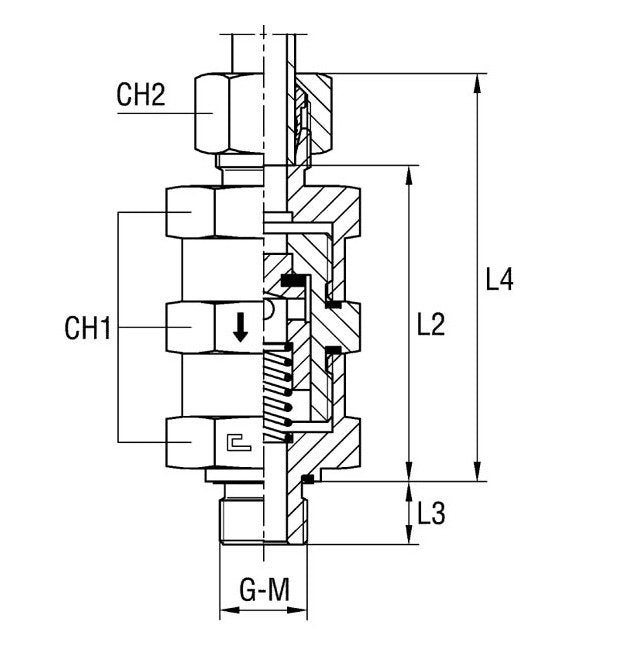

The Hydraulic Male Stud Non Return Valve with Elastomer Seal offers reliable light-duty performance with a nominal operating pressure of 100 bar. Crafted from high-quality stainless steel, this valve features precision engineering to ensure optimal flow control. With a tube diameter of 42.0 mm and compatibility with 48x2 M-thread size, it is designed for seamless integration into hydraulic systems. The valve's compact design, measuring L2 92mm, L3 22.0mm, and L4 114.5mm, along with CH1 70mm and CH2 60mm dimensions, guarantees efficient functionality. Its 29mm diameter pass ensures consistent performance, making it ideal for various hydraulic applications.

Product Specifications

Specifications Ch1

70 mm

Specifications Ch2

60 mm

Specifications Diameter Pass

29 mm

Specifications L2

92 mm

Specifications L3

22.0 mm

Specifications L4

114.5 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

48x2

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

42.0 mm
