Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
SKU:FIT-cba0d9
Reliable Hydraulic Male Stud Non Return Valve with Elastomer Seal for light-duty applications - 250 bar pressure rating, stainless steel construction.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
$39.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non Return Valve with Elastomer Seal features a pressure rating suitable for light-duty applications up to 250 bar. Crafted from durable stainless steel, this valve ensures reliable performance with a precise tube diameter of 12.0 mm. The metric parallel thread and equipped B4 ring enhance installation ease and sealing efficiency, making it ideal for hydraulic systems in various industries.
Ready to Grow Without Cash Flow Constraints?

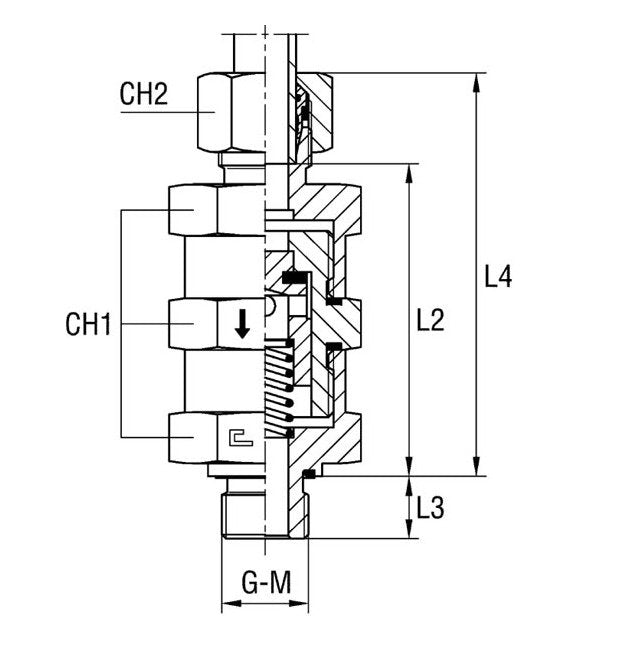

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
22 mm
Specifications Diameter Pass
8 mm
Specifications L2
60 mm
Specifications L3
12.0 mm
Specifications L4
74.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
12.0 mm
