Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
SKU:FIT-2f9b47
Heavy-duty Hydraulic Non Return Valve for 400 bar pressure. Stainless steel construction with B4 Ring for reliable sealing.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
$29.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non Return Valve with Elastomer Seal provides heavy-duty pressure resistance up to 400 bar, with a precise 12x1.5 M - Thread Size. Crafted from durable stainless steel, this valve ensures reliable performance and features a 6.0mm Tube Diameter, making it suitable for various hydraulic applications. The integrated B4 Ring enhances sealing efficiency, offering superior reliability and performance.
Ready to Grow Without Cash Flow Constraints?

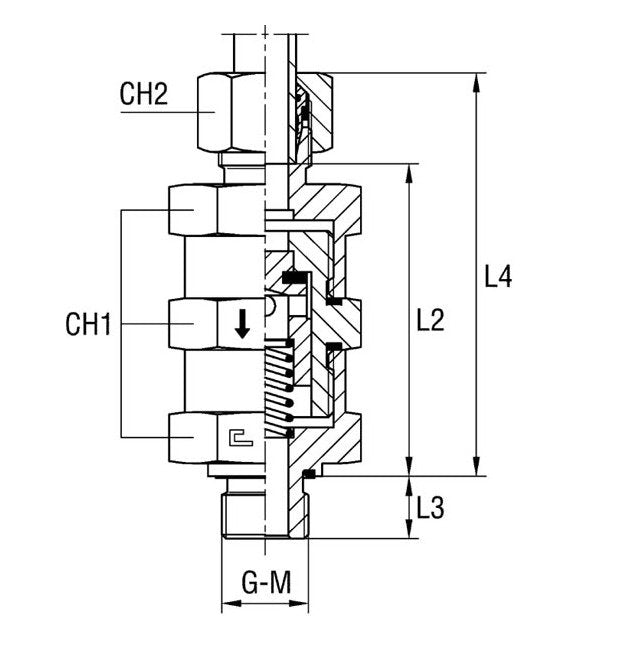

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
17.0 mm
Specifications Diameter Pass
4 mm
Specifications L2
55.0 mm
Specifications L3
12.0 mm
Specifications L4
69.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
12x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
6.0 mm
