Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread, Pressure Rating 250 bar
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread, Pressure Rating 250 bar
SKU:FIT-14b26d
High-performance Hydraulic Non Return Valve for reliable flow control in hydraulic systems. Pressure Rating: 250 bar.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread, Pressure Rating 250 bar
$29.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread, Pressure Rating 250 bar
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non Return Valve with Elastomer Seal offers reliable light-duty performance with a pressure rating of 250 bar. Crafted from durable carbon steel, it features a Tube Diameter of 15.0mm and an M - Thread Size of 18x1.5. With dimensions ensuring efficient flow control, this valve is ideal for hydraulic systems in both consumer and institutional settings.
Ready to Grow Without Cash Flow Constraints?

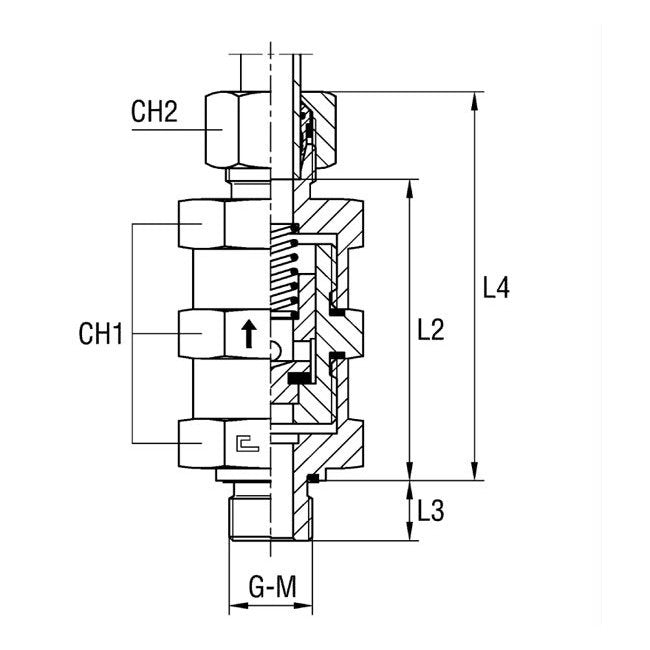

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
27 mm
Specifications Diameter Pass
11 mm
Specifications L2
65 mm
Specifications L3
12.0 mm
Specifications L4
80 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
15.0 mm
