Hydraulic Male Stud Non Return Valve with Elastomer Seal - Standard Body
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Standard Body
SKU:FIT-c63520
Premium Hydraulic Non Return Valve for precise flow control and leak prevention in high-pressure systems.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Standard Body
$39.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve with Elastomer Seal - Standard Body
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non Return Valve with Elastomer Seal ensures exceptional flow control and leakage prevention. With a pressure rating of up to 350 bar, stainless steel construction, and precise metric parallel threading, this valve offers superior performance and durability. Ideal for hydraulic systems in industrial applications, it meets stringent standards for reliability and efficiency.

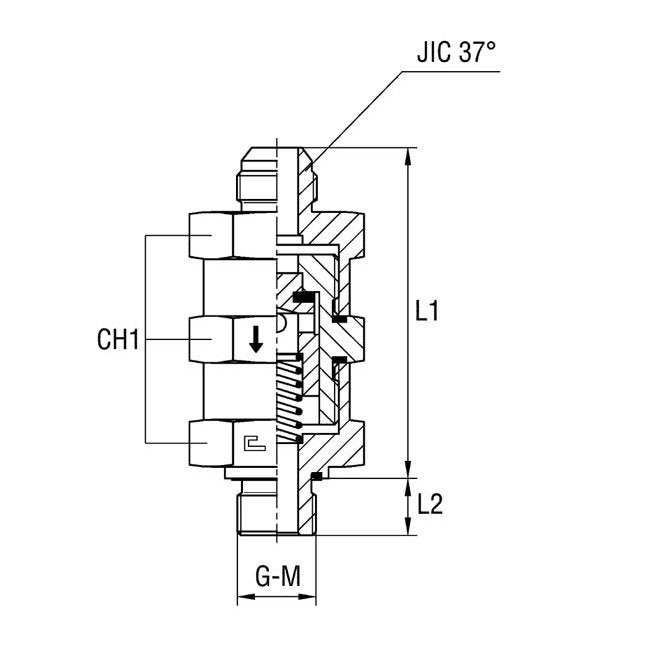

Product Specifications
Specifications Ch1
32 mm
Specifications Diameter Pass
8 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
73.2 mm
Specifications L2
12.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
16x1.5
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/2 in
