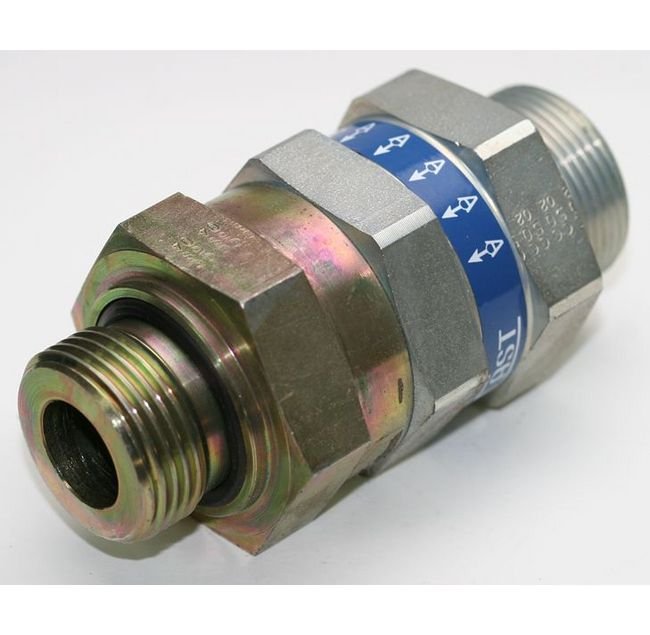

Hydraulic Male Stud Non Return Valve with Elastomer Seal Thread BSP

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal Thread BSP
Brand: World Wide Metric, Inc.
SKU: FIT-7d76ba
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-7d76ba

High-quality Hydraulic Non Return Valve for reliable backflow prevention in hydraulic systems.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

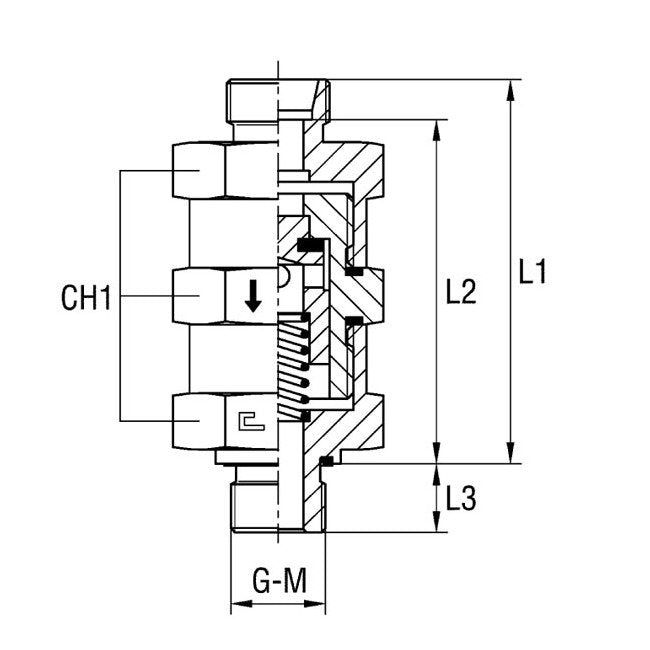

The Hydraulic Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Body Only is designed for light duty applications with a nominal operating pressure of 100 bar. Constructed from carbon steel, this valve features a G-Thread Size of 1 1/4 and a Tube Diameter of 35.0 mm. With precise dimensions including L1: 103.0 mm, L2: 92.5 mm, and L3: 20.0 mm, this valve ensures reliable performance. The CH1 measurement of 70 mm and Diameter Pass of 25 mm make it suitable for various hydraulic systems, providing secure sealing and preventing backflow efficiently.

Product Specifications

Specifications Ch1

70 mm

Specifications Diameter Pass

25 mm

Specifications G Thread Size

1 1/4

Specifications L1

103.0 mm

Specifications L2

92.5 mm

Specifications L3

20.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

35.0 mm
