Hydraulic Male Stud Non-Return Valve with Elastomer Seal Thread BSP Parallel

Name: Hydraulic Male Stud Non-Return Valve with Elastomer Seal Thread BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-d3fa37
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-d3fa37

Reliable Hydraulic Non-Return Valve for precise fluid control in light-duty applications. 160 bar operating pressure.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non-Return Valve with Elastomer Seal Thread BSP Parallel ensures reliable fluid control in hydraulic systems. With a nominal operating pressure of 160 bar, this valve, made of durable carbon steel, is ideal for light-duty applications. Its precise design features a tube diameter of 18.0mm and G-Thread size of 1/2, providing secure fittings. The valve's compact dimensions and high-quality materials guarantee efficient performance and longevity, meeting industry standards for hydraulic check valves.

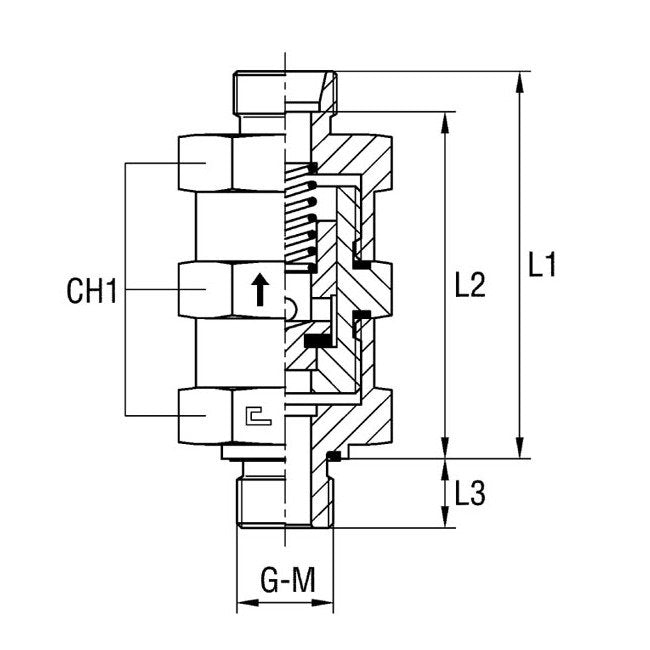

Product Specifications

Specifications Ch1

41 mm

Specifications Diameter Pass

11 mm

Specifications G Thread Size

1/2

Specifications L1

72.0 mm

Specifications L2

64.5 mm

Specifications L3

14.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

18.0 mm

Hydraulic Male Stud Non-Return Valve with Elastomer Seal Thread BSP Parallel
