Hydraulic Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-6fee65
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-6fee65

High-quality non return valve for hydraulic systems. Carbon steel construction, 250 bar pressure.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Body Only is designed for light-duty hydraulic systems, with a nominal operating pressure of 250 bar. Crafted from durable carbon steel, this valve features a 10.0mm tube diameter, 1/4 G-thread size, and precise dimensions for optimal performance. Its advanced design ensures reliable flow control and prevents backflow, making it an essential component for hydraulic check valve applications.

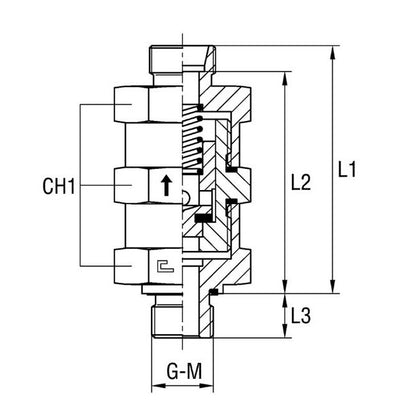

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/4

Specifications L1

61.0 mm

Specifications L2

54.0 mm

Specifications L3

12.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

10.0 mm

Hydraulic Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
