Hydraulic Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel

Name: Hydraulic Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-e734ee
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-e734ee

Reliable Hydraulic Non Return Valve for optimal fluid control. Available in different duty pressures. Stainless Steel construction for durability.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal offers exceptional performance and durability. With specifications including Pressure options of Extra Light Duty, Heavy Duty, and Light Duty, Nominal Operating Pressure of 290 bar, and precision-engineered Stainless Steel construction, this valve ensures reliable operation in demanding hydraulic systems. Its compatibility with 25mm M-Tube Diameter, 1 inch W-Tube Diameter, and 33x2 M-Thread Size makes it a versatile choice for various applications.

Product Specifications

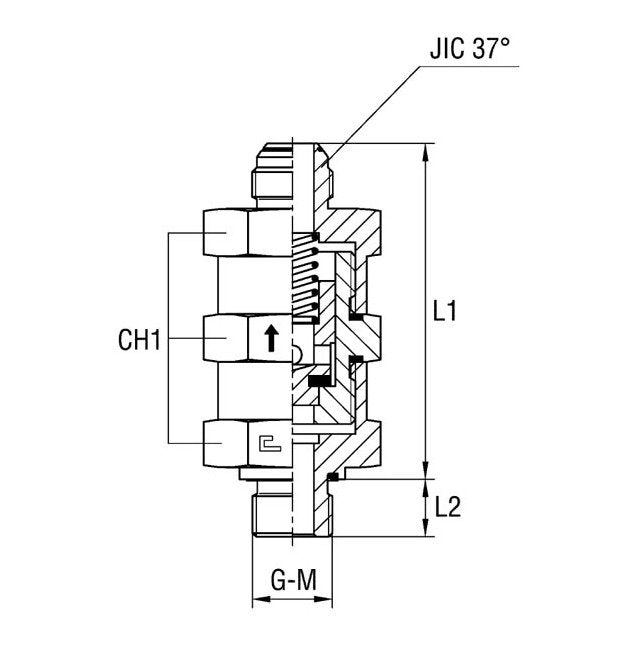

Specifications Ch1

50 mm

Specifications Diameter Pass

18 mm

Specifications Jic 37 Thread

1 5/16-12

Specifications L1

92.1 mm

Specifications L2

18.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

33x2

Specifications M Tube Diameter

25 mm

Specifications Nominal Operating Pressure

290 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

1 in
