Hydraulic Male Stud Non Return Valve with NPT Taper and Equipped B4 Ring

Name: Hydraulic Male Stud Non Return Valve with NPT Taper and Equipped B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-2066f6
Price: 69.99 USD
Availability: OutOfStock

SKU:FIT-2066f6

Enhance hydraulic operations with our precision-engineered Male Stud Non Return Valve, ensuring efficiency and reliability.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with NPT Taper and Equipped B4 Ring is designed for light-duty applications with a nominal operating pressure of 100 bar. Constructed from high-quality carbon steel, this valve features precise specifications including a tube diameter of 35.0 mm, P - Thread Size of 1 1/4, and a pass diameter of 25 mm. With dimensions tailored for efficiency and reliability, this valve ensures seamless hydraulic operations, making it ideal for both consumer and institutional use.

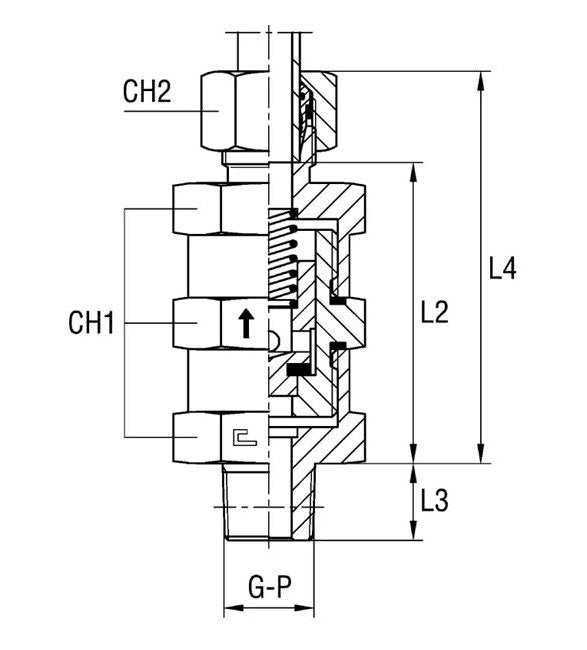

Product Specifications

Specifications Ch1

70 mm

Specifications Ch2

50 mm

Specifications Diameter Pass

25 mm

Specifications L2

89.5 mm

Specifications L3

25.0 mm

Specifications L4

111 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Light Duty

Specifications P Thread Size

1 1/4

Specifications Tube Diameter

35.0 mm

Hydraulic Male Stud Non Return Valve with NPT Taper and Equipped B4 Ring
