Hydraulic Male Stud Non Return Valve with O-ring Thread - Heavy Duty, 350 Bar - Carbon Steel
Hydraulic Male Stud Non Return Valve with O-ring Thread - Heavy Duty, 350 Bar - Carbon Steel
SKU:FIT-3cf134
High-performance Hydraulic Male Stud Non Return Valve for heavy-duty hydraulic systems, 350 bar, Carbon Steel construction
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve with O-ring Thread - Heavy Duty, 350 Bar - Carbon Steel
$49.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve with O-ring Thread - Heavy Duty, 350 Bar - Carbon Steel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non Return Valve with O-ring Thread is designed for reliable performance in heavy-duty hydraulic systems, with a nominal operating pressure of 350 bar. Constructed from durable carbon steel, this valve ensures optimal flow regulation and tight sealing, meeting the stringent requirements of industrial applications. With a variety of tube diameters available, precise fitment and secure connections are guaranteed, enhancing system efficiency and safety.
Ready to Grow Without Cash Flow Constraints?

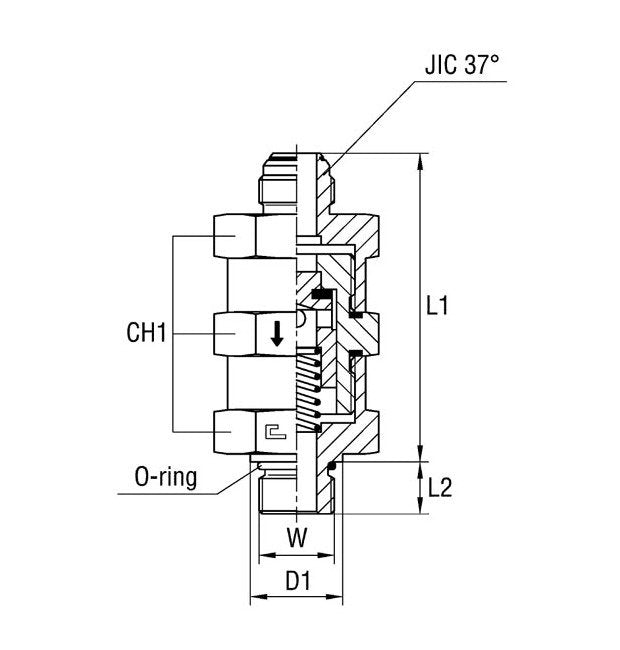

Product Specifications
Specifications Ch1
50 mm
Specifications D1
31.8 mm
Specifications Diameter Pass
14.5 mm
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
87.9 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 1/16-12
Specifications W Tube Diameter
3/4 in
