Hydraulic Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
Hydraulic Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
SKU:VAL-54467c
Ensure reliable flow control and prevent backflow with Hydraulic Male Stud Non Return Valve. Ideal for hydraulic systems.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$69.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Male Stud Non Return Valve with O-ring Thread UNF/UN-2A provides exceptional performance under various pressure levels including Extra Light Duty, Heavy Duty, and Light Duty applications. With a Nominal Operating Pressure of 350 bar, stainless steel construction, and precise dimensions, this valve offers durability, reliability, and optimal flow control. Designed for hydraulic systems, it ensures secure sealing and prevents backflow efficiently, meeting the highest industry standards.

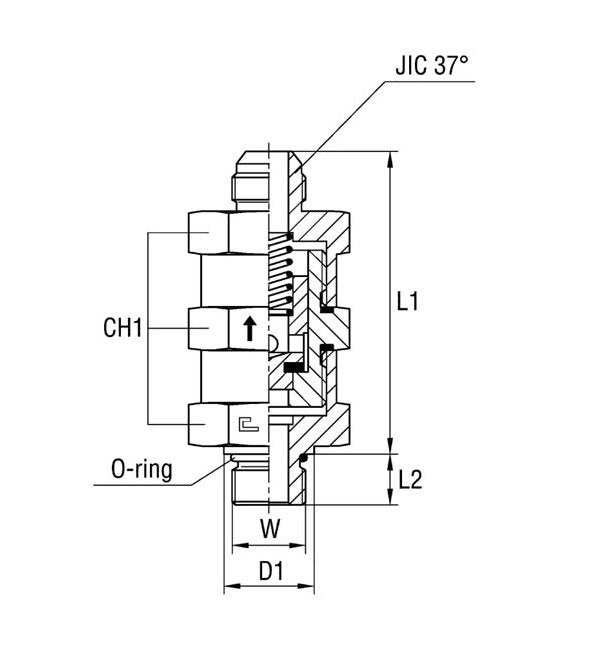

Product Specifications
Specifications Ch1
32 mm
Specifications D1
21.8 mm
Specifications Diameter Pass
8 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
70.7 mm
Specifications L2
11.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
3/4-16
Specifications W Tube Diameter
1/2 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
