Hydraulic Male Stud Non Return Valve with O-ring, UNF/UN-2A - Carbon Steel
Hydraulic Male Stud Non Return Valve with O-ring, UNF/UN-2A - Carbon Steel
SKU:FIT-c95194
Durable Hydraulic Male Stud Non Return Valve with O-ring, UNF/UN-2A - Carbon Steel for reliable performance in heavy-duty applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hydraulic Male Stud Non Return Valve with O-ring, UNF/UN-2A - Carbon Steel
$49.99
Quantity: 1
Claim Your Seller Account
Hydraulic Male Stud Non Return Valve with O-ring, UNF/UN-2A - Carbon Steel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

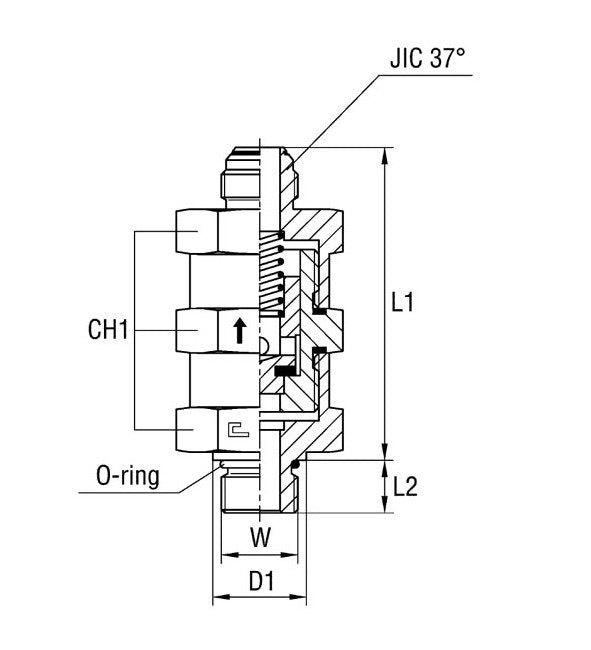

The Hydraulic Male Stud Non Return Valve with O-ring offers unmatched durability and performance. With a nominal operating pressure of 350 bar, this valve ensures reliability even under heavy-duty conditions. Made of high-quality carbon steel, it meets stringent industry standards for robustness and longevity. The precision-engineered design features a 1 1/16-12 thread size and 37° JIC threads for seamless integration into hydraulic systems, making it a top choice for both consumer and institutional buyers.
Product Specifications
Specifications Ch1
50 mm
Specifications D1
31.8 mm
Specifications Diameter Pass
14.5 mm
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
87.9 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 1/16-12
Specifications W Tube Diameter
3/4 in
