Hydraulic Male Stud NPT Taper Non Return Valve - Body Only

Name: Hydraulic Male Stud NPT Taper Non Return Valve - Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-064f89
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-064f89

High-quality Hydraulic Male Stud NPT Taper Non Return Valve for light-duty applications, pressure up to 250 bar, carbon steel material.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

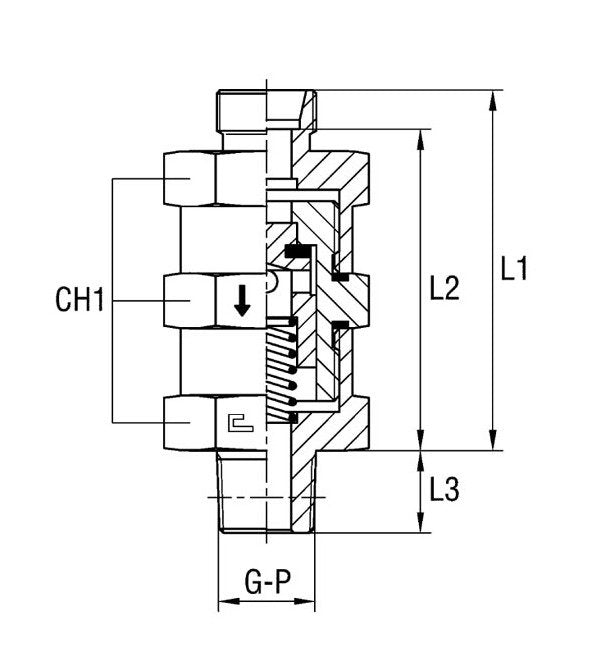

The Hydraulic Male Stud NPT Taper Non Return Valve - Body Only is designed for light-duty applications with a nominal operating pressure of 250 bar. Made of durable carbon steel, this valve ensures reliable performance with a tube diameter of 6.0 mm and 1/8 P-Thread Size. Its compact design, measuring 58.0 mm (L1) x 51 mm (L2) x 10 mm (L3), makes it versatile and easy to install. The valve's precise construction with a 4 mm diameter pass and 19.0 mm CH1 delivers efficient flow control and durability, ideal for hydraulic systems in various industries.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications L1

58.0 mm

Specifications L2

51 mm

Specifications L3

10 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications P Thread Size

1/8

Specifications Tube Diameter

6.0 mm

Hydraulic Male Stud NPT Taper Non Return Valve - Body Only
