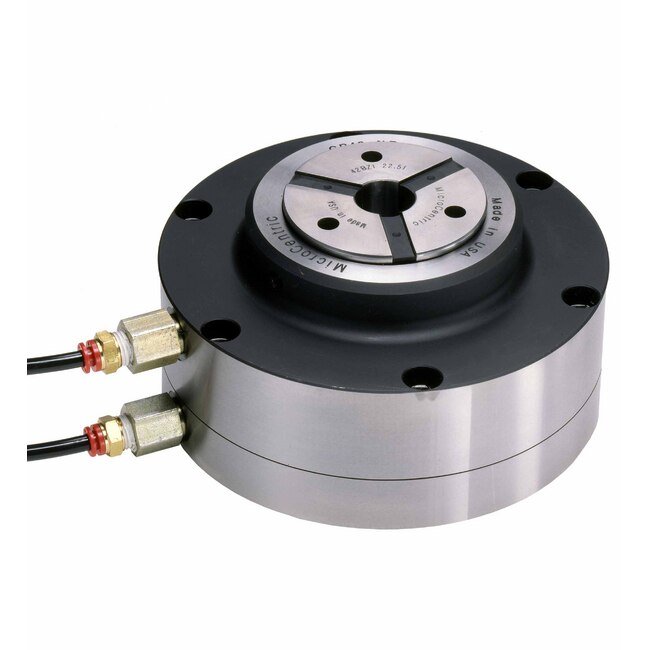

Hydraulic Pull Back Collet Chuck - CB-NRB Series
Hydraulic Pull Back Collet Chuck - CB-NRB Series
SKU:QUI-1a33ce
Highly accurate hydraulic collet chuck for stationary applications, with a max clamping diameter of 4.000 inches and a max clamp force of 33,721 lbs.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Hydraulic Pull Back Collet Chuck - CB-NRB Series
$699.99
Quantity: 1
Claim Your Seller Account
Hydraulic Pull Back Collet Chuck - CB-NRB Series
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NRB Collet Chuck features a hydraulically actuated Pull Back design for non-rotating applications, maximizing clamping efficiency towards the machine table. Built-in cylinder, hardened components, and self-contained lubricated-for-life design ensure minimal maintenance and long-term accuracy. With a max clamping diameter of 4.000 inches and a max clamp force of 33,721 lbs, this stationary collet chuck is ideal for precision machining applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0006 in | 0.015 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK100BZI
Specifications Max Clamping Diameter
4.000 in | 100 mm
Specifications Max Clamp Force
33,721 lbs | 150 kN
Specifications Max Hydraulic Force
530 psi | 3.7 MPa
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Piston Stroke
0.315 in | 8 mm
Specifications Weight
54.6 lb | 24.8 kg
