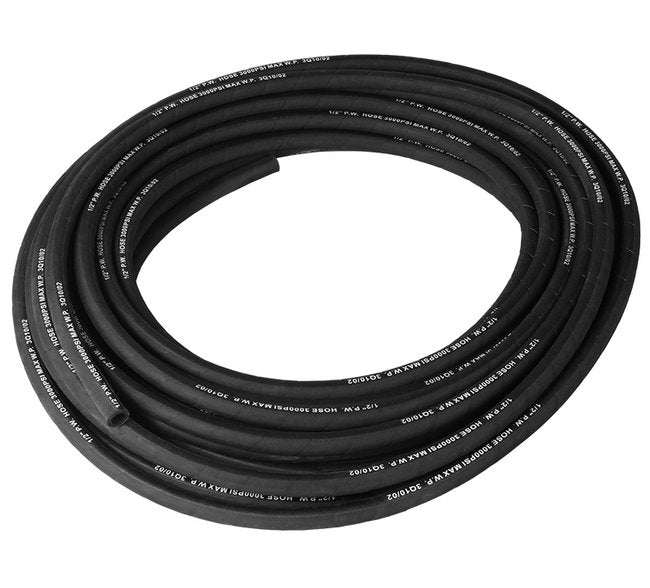

Hydraulic Single Braid 100R1AT Medium Pressure Hose - Bulk Coils
Hydraulic Single Braid 100R1AT Medium Pressure Hose - Bulk Coils
SKU:HOS-87a4e6
Premium Hydraulic Single Braid Hose for mineral oils and glycol liquids. Exceeds SAE J517 standards with 1500 psi working pressure. -40 to +250°F temp range.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Hydraulic Single Braid 100R1AT Medium Pressure Hose - Bulk Coils
$599.99
Quantity: 1
Claim Your Seller Account
Hydraulic Single Braid 100R1AT Medium Pressure Hose - Bulk Coils
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Single Braid 100R1AT Medium Pressure Hose in Bulk Coils is a top-tier choice for industries requiring hydraulic hoses for mineral oil and glycol base liquids. With a working pressure of 1500 psi and burst pressure of 6000 psi, it exceeds SAE J517 standards. This hose features a temperature range of -40 to +250°F, ensuring optimal performance. Constructed with oil and weather-resistant synthetic rubber cover, oil-resistant synthetic rubber tube, and one steel wire braid reinforcement, it offers unmatched durability and reliability. Sold by feet to meet various length requirements.
Product Specifications
Specifications Bend Radius
8 in
Specifications Burst Pressure 70
6000 psi
Specifications Cover
Oil and Weather Resistant Synthetic Rubber
Specifications Id
5/8 in
Specifications Od
0.94 in
Specifications Package Type
Feet
Specifications Reinforcement
One Steel Wire Braid
Specifications Temperature Range
-40 to +250 ºF
Specifications Tube
Oil Resistant Synthetic Rubber
Specifications Weight Per 100 Foot
33.6 lb
Specifications Working Pressure
1500 psi
