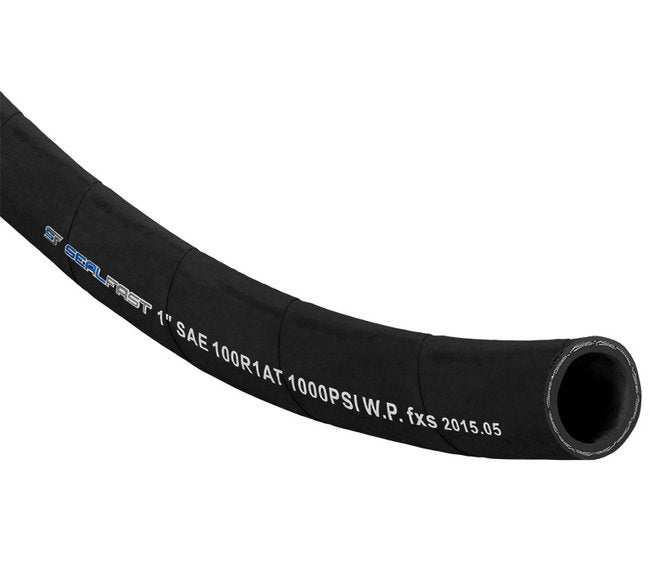

Hydraulic Single Braid 100R1AT Medium Pressure Hose on Reels
Hydraulic Single Braid 100R1AT Medium Pressure Hose on Reels
SKU:HOS-7397b2
Premium Hydraulic Hose for mineral oil & glycol base liquids, exceeding SAE J517 100R1AT standards. Working pressure 2250 psi, burst pressure 9000 psi @ 70°F. Sold by the foot.
Regular price
$2.50
Regular price
Sale price
$2.50
Unit price
per
Initiate Order
Hydraulic Single Braid 100R1AT Medium Pressure Hose on Reels
$2.50
Quantity: 1
Claim Your Seller Account
Hydraulic Single Braid 100R1AT Medium Pressure Hose on Reels
$2.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Single Braid 100R1AT Medium Pressure Hose on Reels is a top-tier hydraulic hose designed for mineral oil and glycol base liquids. Meeting and exceeding SAE J517 100R1AT standards, this hose operates in temperatures ranging from -40 to +250 °F, with peaks to 250 °F. Its construction features an oil and weather resistant synthetic rubber cover, oil-resistant synthetic rubber tube, and one steel wire braid reinforcement. With a working pressure of 2250 psi and a burst pressure of 9000 psi @ 70°F, this hose provides reliability and durability for various hydraulic applications. Sold by the foot.
Product Specifications
Specifications Bend Radius
5 in
Specifications Burst Pressure 70
9000 psi
Specifications Cover
Oil and Weather Resistant Synthetic Rubber
Specifications Id
3/8 in
Specifications Od
0.69 in
Specifications Package Type
Feet
Specifications Reinforcement
One Steel Wire Braid
Specifications Temperature Range
-40 to +250 ºF
Specifications Tube
Oil Resistant Synthetic Rubber
Specifications Weight Per 100 Foot
20.2 lb
Specifications Working Pressure
2250 psi
