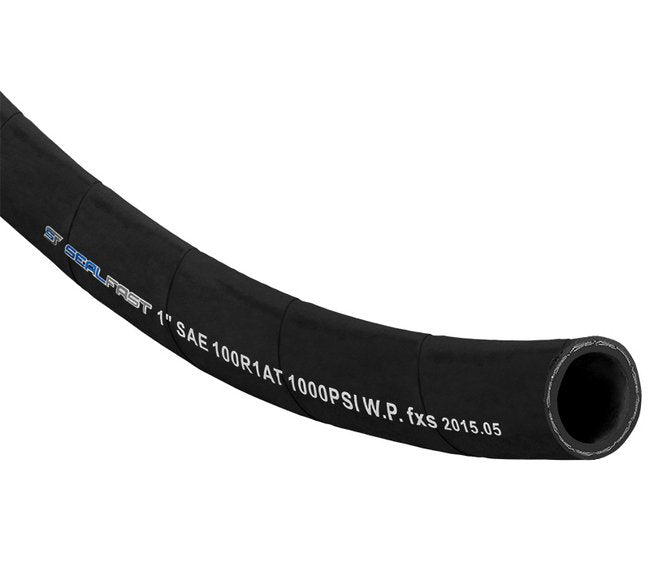

Hydraulic Single Braid Hose - Medium Pressure 100R1AT (On Reels)

Name: Hydraulic Single Braid Hose - Medium Pressure 100R1AT (On Reels)
Brand: Seal Fast, Inc.
SKU: HOS-93fb14
Price: 89.99 USD
Availability: OutOfStock

SKU:HOS-93fb14

High-performance Hydraulic Single Braid Hose - Medium Pressure 100R1AT for mineral oils & glycol-based liquids. Exceeds SAE J517 100R1AT standards.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Single Braid Hose - Medium Pressure 100R1AT is a top-notch choice for mineral oil and glycol-based liquids. This hose exceeds SAE J517 100R1AT standards, offering exceptional performance and durability. With a working pressure of 1250 psi and burst pressure of 5000 psi, it ensures reliable operation in various applications. Constructed with oil and weather-resistant synthetic rubber cover, oil-resistant synthetic rubber tube, and one steel wire braid reinforcement, this hose is designed to withstand harsh environments. Suitable for a temperature range of -40 to +250 ºF, meeting the needs of diverse industrial settings.

Product Specifications

Specifications Bend Radius

9.5 in

Specifications Burst Pressure 70

5000 psi

Specifications Cover

Oil and Weather Resistant Synthetic Rubber

Specifications Id

3/4 in

Specifications Od

1.10 in

Specifications Package Type

Feet

Specifications Reinforcement

One Steel Wire Braid

Specifications Temperature Range

-40 to +250 ÂºF

Specifications Tube

Oil Resistant Synthetic Rubber

Specifications Weight Per 100 Foot

43 lb

Specifications Working Pressure

1250 psi
