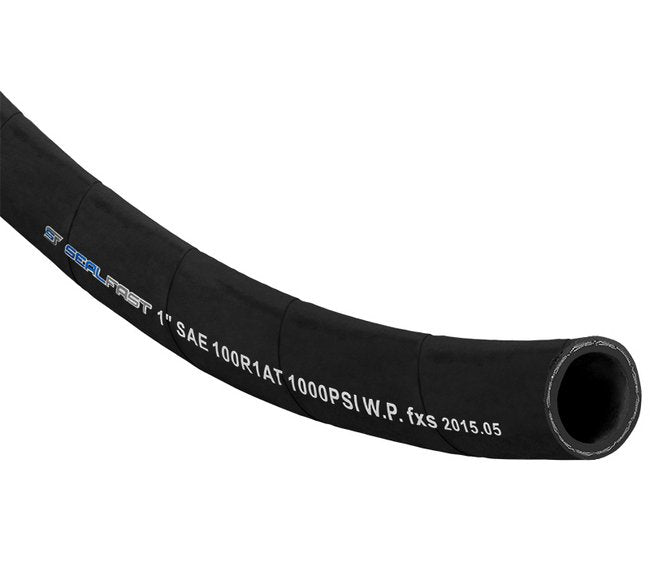

Hydraulic Single Braid Hose - Medium Pressure 100R1AT on Reels

Name: Hydraulic Single Braid Hose - Medium Pressure 100R1AT on Reels
Brand: Seal Fast, Inc.
SKU: HOS-66c963
Price: 7.99 USD
Availability: OutOfStock

SKU:HOS-66c963

Premium Hydraulic Single Braid Hose for mineral oil and glycol fluids, meets SAE J517 100R1AT standards. Durable construction with 2750 psi working pressure.

$7.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Single Braid Hose (Medium Pressure) - 100R1AT on Reels is a top-tier solution for mineral oil and glycol base liquids. Meeting and surpassing SAE J517 100R1AT standards, this hose boasts a temperature range of -40 to +250 °F with peaks up to 250 °F. Constructed with an oil and weather-resistant synthetic rubber cover, oil-resistant synthetic rubber tube, and one steel wire braid reinforcement, it ensures exceptional durability and performance. With a working pressure of 2750 psi and a burst pressure of 11000 psi at 70°F, this hose is reliable in various applications. Sold by the foot.

Product Specifications

Specifications Bend Radius

4 in

Specifications Burst Pressure 70

11000 psi

Specifications Cover

Oil and Weather Resistant Synthetic Rubber

Specifications Id

1/4 in

Specifications Od

0.53 in

Specifications Package Type

Feet

Specifications Reinforcement

One Steel Wire Braid

Specifications Temperature Range

-40 to +250 ÂºF

Specifications Tube

Oil Resistant Synthetic Rubber

Specifications Weight Per 100 Foot

14.8 lb

Specifications Working Pressure

2750 psi
