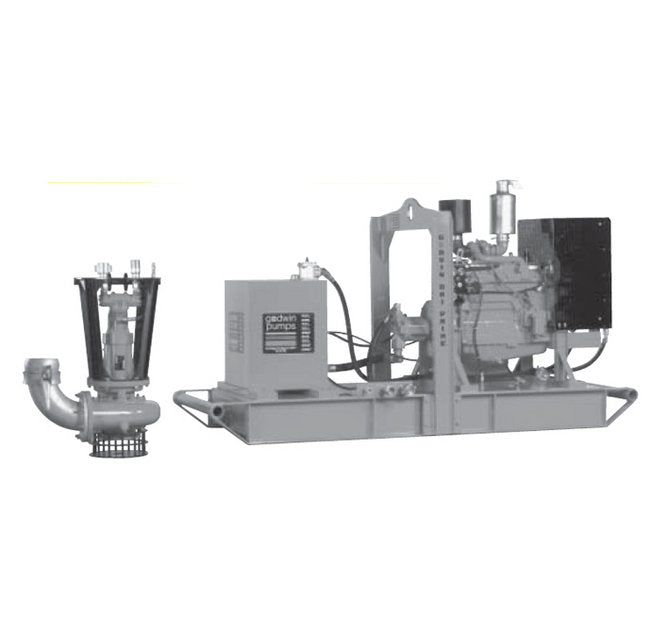

The Godwin HS Series Heidra 200 Hydraulic Submersible Centrifugal Pump is a robust, diesel-powered 8" pump designed for heavy-duty municipal and industrial dewatering and solids handling. With impressive flow rates up to 3100 gpm and a maximum dynamic head of 180', it effortlessly handles solids up to 3-1/8" in diameter. This self-contained pump features a cast iron submersible pump end, a hydraulic power pack, and a rugged steel skid, powered by a variable displacement hydraulic piston pump. Engineered for efficiency, reliability, and ease of use, it offers precise control over pump flow and head performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
Heidra® and the color orange for pumps are registered trademarks of Godwin Pumps of America, Inc.Specifications and illustrations are subject to revision without notice. © Copyright 2002-2003 Godwin Pumps of America, Inc..
Power Pack Control Valve
Pressure Compensated On/Off Valve
Power Pack Engine
John Deere 6068T Engine
Power Pack Fuel Consumption
7.2 g/h | 27 L/h
Power Pack Fuel Tank Capacity
175 gal | 662 L
Power Pack Hydraulic Pipe Connections
1/2 in. (13 mm) Quick-Disconnect Case Drain | 1-1/4 in. (32 mm) Quick-Disconnect Feed and Return
Power Pack Hydraulic Reservoir Capacity
80 gal | 303 L
Power Pack Hydraulic System
Two Pipe, Open Circuit
Power Pack Output Hydraulic Flow
57 USGPM | 3.7 L/s
Power Pack Output Pressure Control
4000 psi | 276 bar
Power Pack Power 2200 Revolutions Per Minute Rpm Caterpillar 311
143 hp | 107 kW
Power Pack Power 2200 Revolutions Per Minute Rpm John Deere 6068
147 hp | 110 kW
Power Pack Power Consumption Caterpillar 3116ta Engine
7.6 gal/h | 29 L/h
Power Pack Power Consumption John Deere 6068t Engine
7.2 gal/h | 27 L/h
Power Pack Return Line Filter
20 µ
Power Pack Supply Line Filter Pleated Gauze
125 µ
Specifications Control
From Engine Speed and Pressure Compensated
Specifications Series
HS
Specifications Weight
780 lb | 354 kg
Submersible Pump Discharge Flange Asa 150
8 in | 200 mm
Submersible Pump Drive Pressure
0 to 4000 psi | 0 to 276 bar
Submersible Pump Hydraulic Connections Port Type
Quick-Disconnect
Submersible Pump Hydraulic Flow
0 to 57 USGPM | 0 to 3.6 L/s
Submersible Pump Hydraulic Line Length
100 ft | 30.5 m
Submersible Pump Hydraulic Motor
Fixed Piston
Submersible Pump Impeller Diameter
11-3/8 in | 290 mm
Submersible Pump Pump Speed
0 to 2200 rpm
Submersible Pump Solids Handling Diameter
0 to 3-1/8 in | 0 to 79 mm
Submersible Pump Strainer
Nylon Coated with 2-3/4 in. (70 mm) Apertures
